SB75-WHI Smart Vision Lights Brick Light Withe

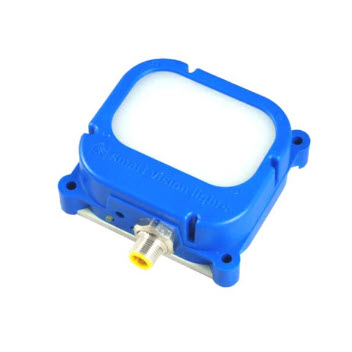

The SB75 Brick Light features a built-in smart driver and a diffused lens, making it a viable option for silhouetting objects. The manual potentiometer control allows the intensity to be adjusted from 10%-100%. A user can also adjust the intensity with the 1-10VDC analog signal line. Heat is dissipated through the aluminum back plate, allowing the SB75 to be run at a higher current and a greater intensity.

5-pin M12 quick connect
Built-in smart driver
PNP and NPN trigger signal input
Backlight lens (diffuser) is factory installed
Intensity adjustable from 10%–100% using built-in potentiometer

Electrical Input 24VDC +/-5%
Input Current Max. 375 mA
Wattage Max. 9.0 W
On/Off Input PNP:+4 VDC or greater to activate | NPN: GND (<1VDC) to activate
PNP Line 4mA@4VDC |10mA@l2VDC| 20mA@24VDC
NPN Line 15 mA @ ground (OVDC)
Yellow Indicator LED LED strobe indicator ON = light active
Green Indicator LED ON = power
Continuous Mode NPN can be tied to ground OR PNP can be tied to 24VDC (not both)
Potentiometer 270° turn pot — intensity control of 10%-1 00%. Turn clockwise to increases intensity.
Analog Intensity The output is adjustable from 10%-1 00% of brightness by a 1-1 OVDC signal. (Jumpering pin 5 to pin 1 will provide maximum intensity.)
Connection 5-pin M12 connector
Ambient Temperature -18°-40°C (0°-104°F)
IP Rating IP50
Weight -155g
Compliances CE, RoHSJEC 62471
Warranty 10 years. For complete warranty information, visit smartvisionlights.com/warranty.

The SB75 Brick Light has four holes for mounting. Diagram shows pan and tilt mounting (part number PB75-M5).

ACCESSORIES

Power Cables
5 m 5PM12-5
10 m 5PM12-10
15 m 5PM12-15

Variable Control Pot
Controls the intensity of the light IVP-C1

Mount
Pan and Tilt Mount PB75-M5

Mounting Rails
300 mm LEXT300
600 mm LEXT600
900 mm LEXT900
1200 mm LEXT1200
Custom sizes available
