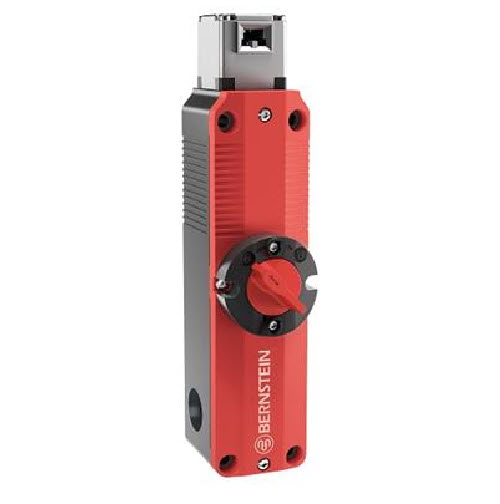

SLC-F-024-20/20-R6 Bernstein Guard Locking Safety Switch 6018200014
$0.00
Product Description
SLC-F-024-20/20-R6
Guard locking safety switch with door monitoring (type 2, DIN EN ISO 14119) in Plastic enclosure with metal head, guard locking principle: spring
Guard locking safety switch with door monitoring (type 2, DIN EN ISO 14119) in Plastic enclosure with metal head, guard locking principle: spring
Guard locking safety switch with door monitoring (type 2, DIN EN ISO 14119) for the safe guarding of machines that run on after switching off. Latching force FZh = 1500 Newton, number of door monitoring Contacts: 2 NC, number of interlocking monitoring Contacts: 2 NC, supply voltage of the coil 24 V, with emergency release from the front and manual release from the back, guard locking principle: spring (Spring-To-Lock), cable entry 3 x M20 x 1,5. actuators must be ordered separately.
Product Specifications
| Manufacturer | Bernstein |
| Connection Type | M20 |
| IP Rating | IP67 |
| Rated Current (A) | 5A |
| Series | SLC |
| Entry Type | 3 x M20 |
| Housing Material | Glass Fibre Reinforced Thermoplastic |
| Operating Voltage | 24V ACDC |
