ST5484E-121-032-00 Metrix VIBRATION
$0.00
ST5484E-121-032-00 Metrix VIBRATION

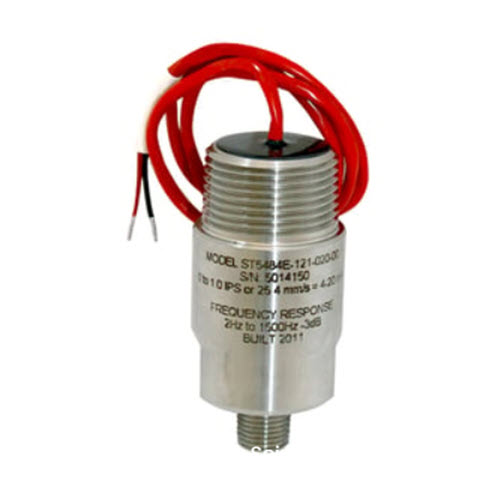

Seismic velocity transmitter
- Product Number: ST5484E-152-032-00
- Full Scale Range¹: 152 – 0.5 in/sec (12.7 mm/s) true RMS
- Hazardous Area Certification 3,4,5: 3 – ATEX, EEx ia IIC T4 Ga (intrinsically safe)
- Connection Type³: 2 – Terminal Block, 2-wire²; (4-20 mA output only)
Detalles
ST5484E-121-032-00 Metrix VIBRATION
Seismic velocity transmitter
Description
The ST5484E is a self-contained seismic velocity transmitter that incorporates a piezoelectric accelerometer, signal integrator, RMS peak detector, and a 4-20 mA signal conditioner into a single package.
The amplitude of the integrated acceleration (velocity) signal is converted to a proportional 4-20 mA signal compatible with industrial process control instrumentation such as PLCs, DCSs, and SCADA systems that can provide trending and/ or alarming capabilities for a simplified vibration monitoring strategy.
To reduce installed cost, it can be used with barriers for intrinsically safe installations, or wired directly to explosion-proof conduit fittings for explosion- proof installations.
Features
- Product Number: ST5484E-152-032-00
- Ordering Information Model: ST5484E – Seismic Velocity 4-20 mA Velocity Transmitter
- Full Scale Range¹: 152 – 0.5 in/sec (12.7 mm/s) true RMS
- Housing Material & Stud Size¹: 0 – 303 SS housing, ¼” NPT stud
- Hazardous Area Certification 3,4,5: 3 – ATEX, EEx ia IIC T4 Ga (intrinsically safe)
- Connection Type³: 2 – Terminal Block, 2-wire²; (4-20 mA output only)
- High-Pass Filter: 0 – 2 Hz (standard)
- Low-Pass Filter: 0 – 1500 Hz (standard)
