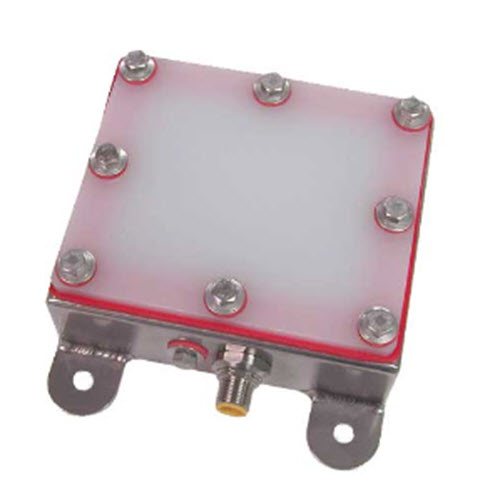

SWB75-WHI Smart Vision Lights Brick Light Washdown White
$0.00
Product Details
- Illumination Type:Backlight
- IP Rating:IP68
- Mode:Continuous
The SWB75 Brick Light Series of spot lights features a stainless-steel IP68-rated enclosure specially designed for the food industry and washdown environments. The SWB75 features a diffused lens and is a viable option for silhouetting objects. NPN or PNP trigger signal inputs can be used to control the pulse of the light. The intensity of the light can be controlled via 1-10VDC analog signal line or by adjusting the built-in manual potentiometer.
PRODUCT SPECIFICATIONS
Electrical Input 24VDC +/-5%
Input Current Max. 375 mA
Wattage Max. 9.0 W
On/Off Input PNP:+4VDC or greater to activate 1 NPN :GND(<1VDC) to activate
PNPLine 4mA@4VDC I 10mA@12VDC| 20mA@24VDC
NPN Line 15 mA @ ground (OVDC)
Yellow Indicator LED LED strobe indicator ON = light active
Green Indicator LED ON = power
Continuous Mode NPN can be tied to ground OR PNP can be tied to 24VDC (not both)
Potentiometer 270° turn pot — intensity control of 10%-100%. Turn clockwise to increases intensity.
Analog Intensity The output is adjustable from 10%-100% of brightness by a 1-1 OVDC signal. (Jumpering pin 5 to pin 1 will provide maximum intensity.)
Connection 5-pin M12 connector
Ambient Temperature -180-40°C (00-104°F)
IP Rating IP68K
Weight _~155g
Compliances CE, RoHS, IEC 62471
