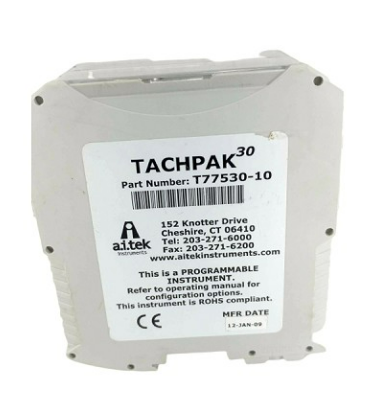

T77530-10 AI-Tek Instruments TachPak 30 Standard Enclosure

T77530-10 AI-Tek Instruments TachPak 30 Standard Enclosure
The TACHPAK 30 computing tachometer measures input frequency. This dual channel instrument also converts the resulting quantities to an analog output, utility RS485 communication, 2 solid state and 2 mechanical relay functions.

SPECIFICATIONS:

• Quicker Response Time: 7.6 ms (analog), 16.5 ms (mech. relays), 2ms (dig. relays)
• Higher Level of Accuracy: 0.1% (analog), 0.005% (relays)
• Field Programmable: Using TACHLINK or TACHTROL plus
• Digital Configuration: Approaches real time
• Analog Outputs: 0 -20 mA, 4-20 mA, -20 to 0 to +20 mA
• Relays: (2) Mechanical form C, 6 A @ 277 Vac, (2) solid state form A 0.4 A @ 60 Vac or DC
• Digital Display: Accepts (8) TACHTROL plus remote displays
• Computed Functions: 9
