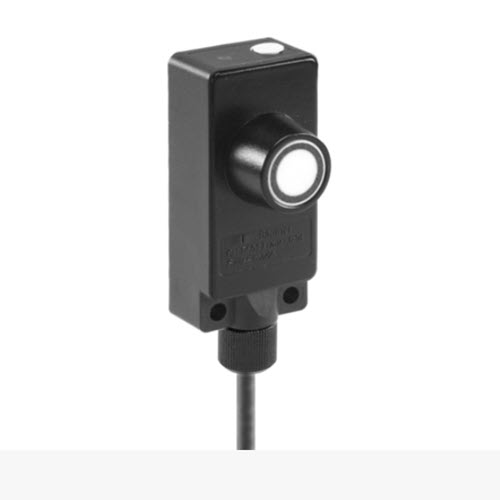

UNDK 30N3713 Baumer Ultrasonic proximity sensors 10125158
$0.00
Ultrasonic proximity sensors
General data
- Scanning range Sd
-
- 30 … 250 mm
- Scanning range far limit Sde
-
- 30 … 250 mm
- Hysteresis typ.
-
- 4 % Sde
- Repeat accuracy
-
- 0.5 mm
- Synchronization
-
- Yes
- Multiplex version
-
- On request
- Temperature drift
-
- < 0,18 % Sde/K
- Response time ton (sync on)
-
- < 10 ms
- Release time toff (sync on)
-
- < 10 ms
- Sonic frequency
-
- 300 kHz
- Adjustment
-
- Potentiometer
- Alignment aid
-
- Target indication flashing
- Output indicator
-
- LED green
Electrical data
- Voltage supply range +Vs
-
- 12 … 30 VDC
- Current consumption max. (no load)
-
- 35 mA
- Output circuit
-
- NPN break function (NC)
- Output current
-
- 200 mA
- Voltage drop Vd
-
- <2 VDC
- Residual ripple
-
- < 10 % Vs
- Short circuit protection
-
- Yes
- Reverse polarity protection
-
- Yes
Mechanical data
- Design
-
- Rectangular
- Housing material
-
- Polyester / die-cast zinc
- Width / diameter
-
- 30 mm
- Height / length
-
- 65 mm
- Depth
-
- 31 mm
- Connection types
-
- Cable, L=2 m
Ambient conditions
- Operating temperature
-
- -25 … +60 °C
- Protection class
-
- IP 67
