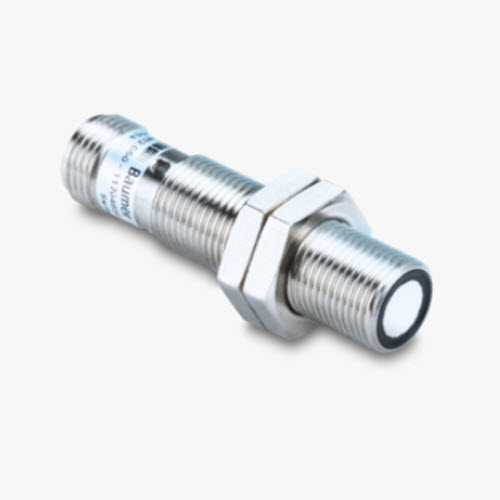

UR12.EA0-GP2C.7BF Baumer Ultrasonic through beam sensors 11704838
$0.00
Article no.: 11704838
General data
- Emitter / receiver
-
- Receiver
- Scanning range Sd
-
- 0 … 1000 mm
- Scanning range close limit Sdc
-
- 15 … 1000 mm
- Scanning range far limit Sde
-
- 0 … 1000 mm
- Version
-
- IO-Link
- Object size (at Sd = 50 mm)
-
- > 4 cm²
- Hysteresis typ.
-
- 5 % Sde
- Repeat accuracy
-
- 1 mm
- Temperature drift
-
- < 2 % Sde
- Response time ton
-
- < 2 ms
- Release time toff
-
- < 2 ms
- Adjustment
-
- line-Teach, IO-Link
- Sonic frequency
-
- 290 kHz
- Alignment aid
-
- Target indication flashing
- Output indicator
-
- LED yellow
- Power on indication
-
- LED green
Electrical data
- Voltage supply range +Vs
-
- 12 … 30 VDC
- Current consumption max. (no load)
-
- 35 mA
- Output circuit
-
- Push-pull
- Output current
-
- 100 mA
- Voltage drop Vd
-
- <3 VDC
- Residual ripple
-
- < 10 % Vs
- Short circuit protection
-
- Yes
- Reverse polarity protection
-
- Yes, Vs to GND
Communication interface
- Interface
-
- IO-Link V1.1
- Baud rate
-
- 230,4 kBaud (COM 3)
- Cycle time
-
- ≥ 0.8 ms
- Process data length
-
- 48 Bit
- Process data structure
-
- Bit 0 = SSC1
- Bit 1 = SSC2
- Bit 3 = alarm
- Bit 16-31 = 16 Bit measurement
- IO-Link port type
-
- Class A
- Additional data
-
- Excess gain
- Operating cycles
- Operating hours
- Boot cycles
- Operating voltage
- Device temperature
- Histograms
- Adjustable parameters
-
- Time filters
- LED status indicators
- Output logic
- Output circuit
- Counter
- Deactivate the sensor element
- Find Me function
Mechanical data
- Design
-
- Cylindrical threaded
- Housing material
-
- Brass nickel plated
- Width / diameter
-
- 12 mm
- Height / length
-
- 50 mm
- Connection types
-
- Connector M12 5 pin
- Tightening torque max.
-
- 15 Nm (Front: 10 Nm)
Ambient conditions
- Operating temperature
-
- -25 … +65 °C
- Storage temperature
-
- -40 … +75 °C
- Protection class
-
- IP 67
