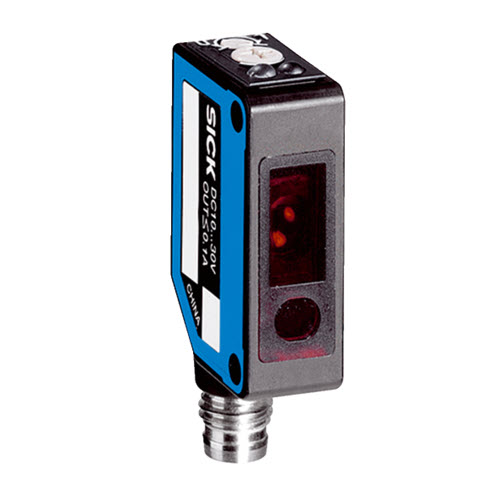

WL8-P1131 Sick 6033177 Photoelectric sensors

WL8-P1131 | W8 PHOTOELECTRIC SENSORS

Ordering information Type part no. WL8-P1131 6033177

Features Functional principle Photoelectric retro-reflective sensor Functional principle detail Without reflector minimum distance (autocollimation/coaxial optics) Dimensions (W x H x D) 11 mm x 31 mm x 20 mm Housing design (light emission) Rectangular Sensing range max. 0 m … 4 m 1) Sensing range 0 m … 3 m 1) Type of light Visible red light Light source LED 2) Light spot size (distance) Ø 30 mm (1 m) Wave length 650 nm Adjustment Potentiometer, 270° Special applications Detection of objects moving at high speeds
