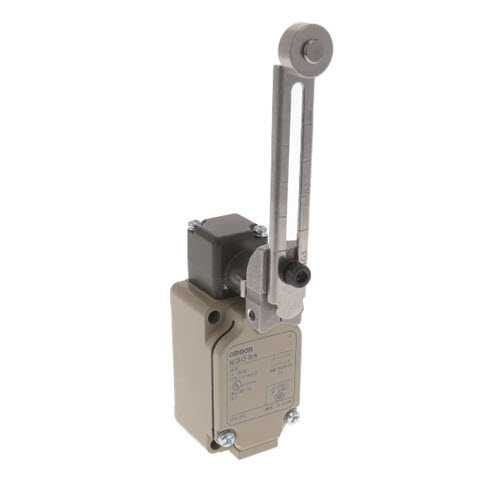

WLCA12-TH-N Omron SWITCH SNAP ACTION SPDT 10A 125V

Part Status
Active
Circuit
SPDT (DB/DM)
Switch Function
On-Mom
Current Rating (Amps)
10A (AC), 6A (DC)
Voltage Rating – AC
125 V
Voltage Rating – DC
30 V
Actuator Type
Side Rotary, Adjustable Roller
Mounting Type
Chassis Mount
Termination Style
Screw Terminal
Ingress Protection
IP67 – Dust Tight, Waterproof
Features
–
Operating Force
1360gf
Release Force
120gf
Operating Position
–
Pretravel
15°
Differential Travel
12°
Overtravel
70°
Mechanical Life
15,000,000 Cycles
Electrical Life
750,000 Cycles
Operating Temperature
5°C ~ 120°C
Base Product Number
WLCA12
