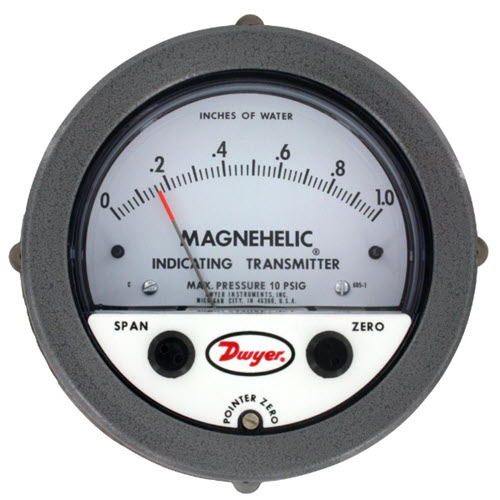

605-1 Dwyer Differential pressure indicating transmitter

605-1 Dwyer Differential pressure indicating transmitter

Differential pressure indicating transmitter, range 0-1.0″ w.c., max. pressure 10 psi (1.7 bar), ±2% electrical accuracy, ±2% mechanical accuracy.

Range

• 1: 0 to 1.0″ w.c.

Features

• Easy to read gage permits viewing from far away
• Patented design provides quick response to pressure changes means no delay in signaling and alerting to critical situations
• Durable and rugged housing and high-quality components combined provides long-service life and minimized down-time
• Optional stainless steel bezel is the same installation diameter as Magnehelic® gage and simplifies field upgrade to 605
• The Series 605 Magnehelic® Differential Pressure Indicating Transmitter provides for both visual monitoring and electronic control of very low differential pressure.
• The Series 605 is ideal for control applications in building HVAC systems where local indication is desired during routine maintenance checks or necessary when trouble shooting the system.
• The easily read dial gage is complimented by the 2-wire, 4-20 mA control signal utilizing the time-proven Dwyer® Magnehelic® gage mechanical design and Series 600 transmitter technology.
• The 2-wire design with terminal strip on the rear simplifies connection in any 4-20 mA control loop powered by a 10-35 VDC supply

Options

• AT: Aluminum Tag
• G: Green Scale Overlay
• HC: Horizontal Calibration
• M: Mirror Scale Overlay
• NIST: NIST Certificate of Calibration
• R: Red Scale Overlay
• SS: Brushed 304 Stainless Steel Bezel
• ST: Stainless Steel Tag
• TA: Tilt Angle from Vertical in Degrees
• WP: Weather Proof Enclosure
• Y: Yellow Scale Overlay
