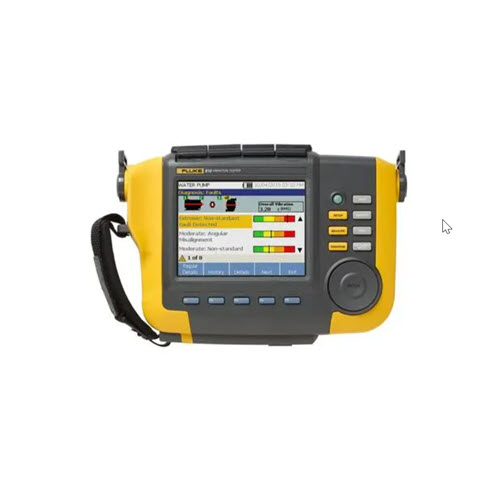

810 Fluke Vibration Tester

Fluke 810 Vibration Tester

Key features

On-board identification and location of the most common mechanical faults (bearings, misalignment, unbalance, looseness) focus maintenance efforts on root cause, reducing unplanned downtime
Overall vibration level allows you to quickly assess overall machine health directly from the diagnosis screen
Fault severity scale with four severity levels helps you prioritize maintenance work
Repair recommendations advise technicians on corrective action
Detailed diagnostic reports and spectral diagrams help confirm data quality, and narrow down the root cause of failures
On-board context sensitive help provides real-time tips and guidance to new userS

Specifications: Fluke 810 Vibration Tester

Diagnostic Specifications
Standard Faults Unbalance, looseness, misalignment and bearing failures
Analysis For Motors, fans, blowers, belts and chain drives, gearboxes, couplings, centrifugal pumps, piston pumps, sliding vane pumps, propeller pumps, screw pumps, rotary thread/gear/lobe pumps, piston compressors, centrifugal compressors, screw compressors, closed coupled machines, spindles
Motor Rotational Speed Range 200 rpm to 12000 rpm
Diagnosis Details Plain-text diagnosis, fault severity (slight, moderate, serious, extreme), repair details, cited peaks, spectra

Electrical Specifications
Ranging Automatic
A/D Converter 4 channel, 24 bit
Usable Bandwidth 2 Hz to 20 kHz
Sampling 51.2 Hz
Digital Signal Processing Functions Automatically configured anti-alias filter, high-pass filter, decimation, overlapping, windowing, FFT, and averaging
Sampling Rate 2.5 kHz to 50 kHz
Dynamic Range 128 dB
Signal To Noise Ratio 100 dB
FFT Resolution 800 lines
Spectral Windows Hanning
Frequency Units Hz, orders, cpm
Amplitude Units in/sec, mm/sec, VdB (US), VdB* (Europe)
Non-volatile Memory SD micro memory card, 2 GB internal + user accessible slot for additional storage

General Specifications
Dimensions (H x D x W) 18.56 x 7.00 x 26.72 cm (7.30 x 2.76 x 10.52 in)
Weight (With Battery) 1.9 kg (4.2 lb)
Display ¼ VGA, 320 × 240 Color (5.7 inch diagonal) TFT LCD with LED backlight
Input/Output Connections Triaxial sensor connection 4 pin M12 connector
Single axis sensor connection BNC connector
Tachometer Connection Mini DIN 6 pin connector
PC Connection Mini ‘B’ USB (2.0) connector
Battery Battery type Lithium-ion, 14.8 V, 2.55 Ah
Battery charging time Three hours
Battery discharge time Eight hours (under normal conditions)
AC Adapter Input voltage 100 VAC to 240 VAC
Input frequency 50/60 Hz
Operating System WinCE 6.0 Core
Language Support English, French, German, Italian, Japanese, Portuguese, Simplified Chinese, Spanish
Warranty Three-years
