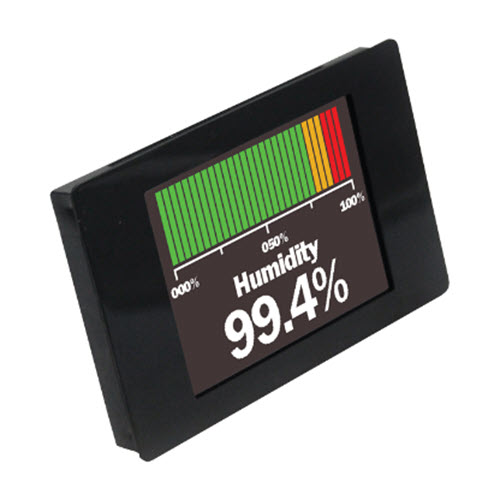

Smart Programmable Panel Meter with 0-50 mA input with 2.4″ display


FEATURES

• Available with 2.4″, 2.8″, or 3.5″ color touch screen display
• Free downloadable Windows® software allows the unit to be customized to specific applications

Inputs:

Current: 0 to 50 mA, scalable (factory set from 4 to 20 mA); Voltage: 0 to 40 VDC, scalable (factory set from 0 to 10 V).

Accuracy:

0.1%.

Resolution:

0.3 to 9.8 mV (depending on input range).

Power Supply:

4-30 VDC max or via USB.

Current Consumption:

190 mA max.

Display:

2.4″, 2.8″ or 3.5″ TFT full color screen.

Display Resolution:

320 x 240 pixels.

Sampling Rate:

3 samples/second.

Operating Temperature:

32 to 104°F (0 to 40°C).

Warm Up:

30 seconds

Mounting:

Panel mount.

Connection:

Screw terminals, pin connection, or USB.

Software Requirements:

Compatible with Windows® 7, Windows® 8 and Windows® 10.

Weight:

2.8 oz (79.4 g).

Compliance:

CE, RoHS.





SPPM-HSG SPECIFICATIONS

Service:

Indoor or outdoor.

Material:

Painted aluminum and glass.

Enclosure Rating:

NEMA 4X (IP66).





A-SPPM-TC SPECIFICATIONS

Probe Measurement Range:

K-type: -328 to 2462°F (-200 to 1350°C); J-type: -328 to 2174°F (-200 to 1190°C); T-type: -328 to 734°F (-200 to 390°C).

Temperature Limits:

14 to 104°F (-10 to 40°C).

Resolution:

1.0°F (0.5°C).

Power Requirements:

Powered by USB port through SPPM panel meter.

Accuracy:

±2.0°F (±1.0°C).

Weight:

0.9 oz (25.5 g).

Compliance:

RoHS.
