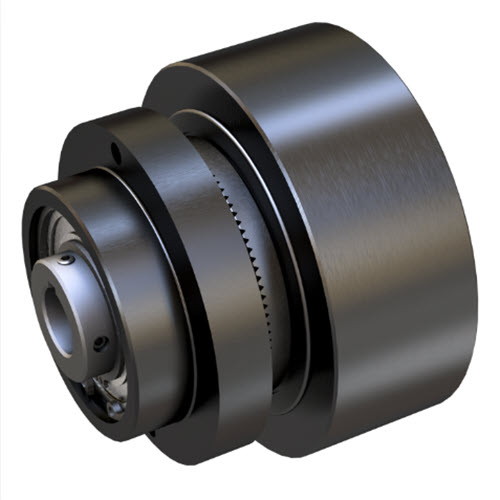

910000 Nexen Group Air Engaged Tooth Clutch 5H 35P

Specifications

Specifications
Weight 11.05 lbs
Min Sprocket Size 35/40T, 40/32T, 50/26T, 60/22T, 80/17T
Mounting Style Shaft
Engagement Method Air
Release Method Spring
Number Of Engagement Positions 106
Max Speed 3200 RPM
Drive Inertia 11.28 lbin²
Shaft Inertia 2.88 lbin²
Backlash 0.35 °
Open Or Enclosed Design Open
Primary Finish Black Oxide
Min Ambient Temperature 32 °F
Max Ambient Temperature 150 °F
CE Certified CE
RoHS Compliant RoHS
Bore Details Straight
Input Shaft Securement 2, 0.190-24 Set Screws @ 90°
Max Static Clutch Torque 2450 inlb
Min Static Clutch Torque 610 inlb
Max Allowable Pressure 120 psi
Max Operating Pressure 80 psi
Min Engagement Pressure 20 psi
Air Chamber Volume 0.492 in³
Inlet Size 0.125-27 NPTM
Hose Length 8.25 in
Positioning Non-Positioning
Bore Style Machined Bore with Keyway
Materials Of Construction Machined Aluminum Air Chamber Black Oxide Pilot
Output Configuration Pilot

Dimensions

Dimensions
Length 4.13 in
Outer Diameter 5.06 in
Pilot Size 3.500 in
Bore Size 1.125 in, Machined Bore with Keyway
Output Bolt Circle 4.062 in
Output Bolt Hole Size 4 0.250-20 in, Holes @ 90°

Notes

Notes
Product Features Air Engaged, Spring Released, Pilot Mount, Non-Positioning
Restrictions Consult Nexen For Use In Cyclic Applications Or Engagement At Differential Speeds
