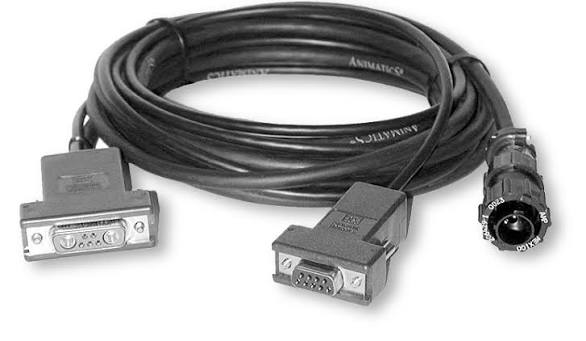

CBLSM1-3M MOOG ANIMATICS Power and Communications Cable

CBLSM1-3M MOOG ANIMATICS Power and Communications Cable

SPECIFICATIONS:

• Manufacturer: Moog Animatics
• Part Number: CBLSM1-3M
• Product Type: Combined Power and Serial Communications Cable
• Primary Application: Serves as the primary line to simultaneously supply DC power and RS-232 serial communication to a Moog Animatics SmartMotor™ via its main connector
• Motor-End Connector: 7W2 Main Motor D-Sub Connector
• Breakout / Split End 1 (Data): Pre-wired RS-232 DB-9 Connector (plugs directly into standard PC serial ports)
• Breakout / Split End 2 (Power): Flying leads / dedicated connector tailored for enclosed frame linear power supplies (such as your PS42V6AG-110)Cable Length: 3 Meters (~10 feet)
• Shielding Specs: Communication shield is grounded at the DB-9 end but completely isolated at the motor end to limit electrical noise
