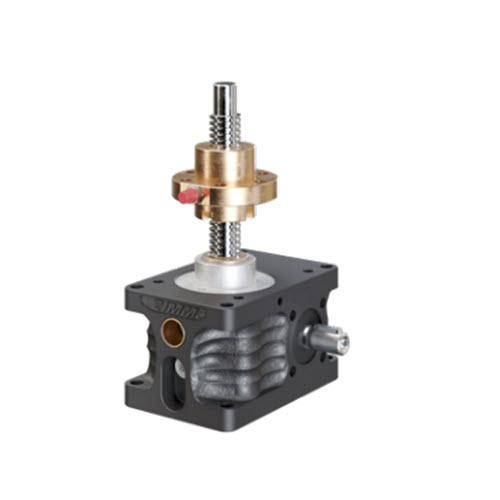

ZE-10-RN ZIMM Screw Jack Body 10KN 4-1 Z-10-RN

Technical Especifications:

Size: 10 kN
Screw size standard: TR 20×4
Nominal speed: 1500 rpm
Max. drive shaft speed: 3000 rpm
Housing material: Aluminium, corrosion-resistant
Worm shaft: Steel, case-hardened, ground
Weight of screw jack body: 2.1 kg
Weight of screw/m: 2 kg
Gearbox lubrication: Synthetic fluid grease
Screw lubrication: Grease lubrication
Gearbox operating temperature: max. 60°, higher on request
Moment of inertia: N: 0.361 kg cm² / L: 0.226 kg cm²
Input torque (at 1500 rpm): max. 13.5 Nm (N) / max. 7.5 Nm (L)
Drive-through torque: max. 57 Nm
Screw: Rotating (R)

R-Screw | rotating

The spindle is fixed to the worm wheel and rotates with it. The nut therefore moves up and down.
