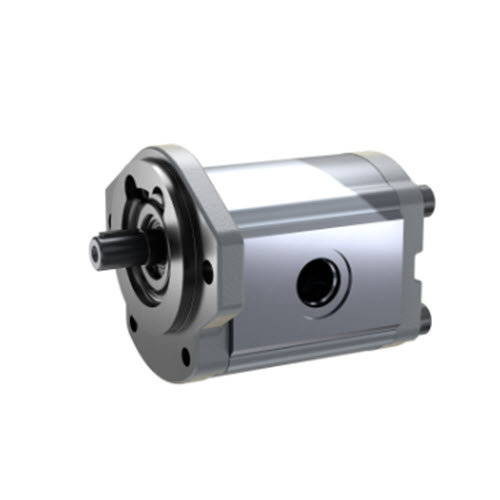

9510290124 Rexroth AZPF-12-022RQR12MB HYDRAULIC GEAR PUMP

Features

Tandem and multi-pump configurations
Wide range of configurations
Ports: threaded or flange
Drive shafts to SAE or ISO
Slide bearings for heavy duty applications
Nominal pressure 280 bar
Sizes 4 to 28 cc

Tech Specifications

Series: AZPF
Fluid Type: Mineral Oil Based Hydraulic Fluids
Rear cover Standard (cast iron)
Displacement Size: 22.9cc
Maximum rotational speed 2500 rpm
Inlet Port: 16
Outlet Port: 10
Size (geometric displacement) 22.5 cm³/rev
Connection Type: Thread (UN-2B) SAE O-Ring BOSS
Sealing material NBR
Speed Rating: 2000 – 2750 rpm
Version Corrosion resistant, pinned
Direction Of Rotation: Clockwise
Noise level Standard noise level
External gear unit External Gear Unit
Seal Material: NBR
Application general
Mounting: Flange/Through-Bolting With Pilot
Drive shaft Straight shaft SAE J744 16-1 (short)
Shaft Type: Cylindrical(Straight Key) SAE A 5/8 Inch
Housing material Aluminum
Number of Bolts: 2
Line connection Thread UN-2B, SAE O-ring
Viscocity: 12 – 800 sq-mm/sec
Maximum Intermittent Pressure: 210 bar
Series Model F (4 … 28 cm³/rev)
Front cover SAE J744 82-2 (A) 2-bolt flange
Maximum Continuous Pressure: 180 bar
Maximum intermittent pressure 140 bar
Temperature Rating: -15 to 60 deg C
Direction of rotation Clockwise rotation
Unit version Bearing diameter 18mm
External gear unit function Pump
Weight 4.04 kg
Max. flow 56.3 l/min – delete
