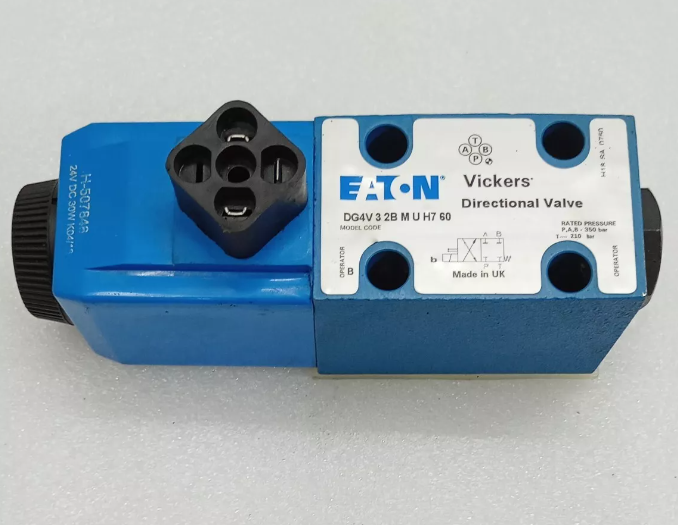

DG4V 3 2B M U H7 60 VICKERS DIRECTIONAL CONTROL VALVE
$0.00
FEATURE […]
Detalles
FEATURE CODE DESCRIPTION
| SEAL TYPE | _ | (0) VITON |
| VALVE TYPE | DG4V | (DG4V) SOL. OPERATED SUB PLATE MOUNTED DCV, 350 BAR AT PORTS A, B & P |
| INTERFACE | -3 | (3) ISO/DIN 4401-AB-03, SIZE 3 INTERFACE |
| PERFORMANCE | _ | (0) HIGH PERFORMANCE |
| SPOOL TYPE | -2 | (2) P,A,B,T BLOCKED |
| SPRING ARRANGEMENT | B | (B) SPRING CENTERED, SINGLE SOLENOID |
| BUILD ORIENTATION | _ | (0) STANDARD BUILD |
| MANUAL OVERRIDE | _ | (0) PLAIN OVERRIDE IN SOLENOID ENDS ONLY |
| SOLENOID IDENTIFICATION | -M | (M) FLAG WITH STANDARD BUILD AS PER ANSI B93 9 |
| SPOOL MONITORING SWITCH | _ | (0) NO SPOOL POSITION MONITORING SWITCH |
| COIL TYPE | -U | (U) ISO4400, DIN43650 CONNECTOR |
| SOLENOID INDICATOR LIGHT | _ | (0) NO SOLENOID INDICATOR LIGHT |
| DIODE | _ | (0) NO DIODE |
| COIL VOLTAGE | -H | (H) 24V DC 30 WATT |
| TANK PORT RATING | 7 | (7) 210 BAR (3000 PSI) FOR DC HIGH PERFORMANCE MODELS |
| DESIGN CODE | -60 | (60) DESIGN NUMBER |
