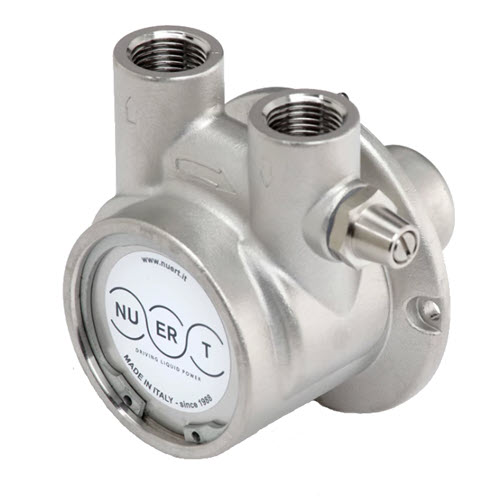

MAG-PRG 6 SXE_GCCF Nuert Magnetic drive pump

These pumps combine the typical advantages of positive displacement vane pumps with magnetic drive technology.

They are characterized by the lack of a rotating mechanical seal, and they guarantee excellence retention, without any leaks or dripping even with difficult liquids.

A magnetic coupling transmits motion from the electric motor to the pump and replaces the classic mechanical system, so that the pump shaft is not in contact.

These electric pumps are self-priming and have greater efficiency due to less mechanical friction. Reliability and durability have increased compared to the models with mechanical seal.

They are ideal for handling chemical or aggressive liquids, especially as low energy consumption recirculation pumps.

Areas of application

Perfect for applications in cooling systems, soda recirculation, chemical liquid transfer pumps, solar systems, reverse osmosis systems

MAG-PRG pumps are available with the following flow rates:

500 l/h
600 l/h
800 l/h
1080 l/h

The flow rate values refer to a rotation speed of 1,400 rpm. For speeds of 1,725 rpm a 20% increase must be taken into account.

The maximum pressure that can be achieved is 14 bar and it depends on the type of magnet chosen.
