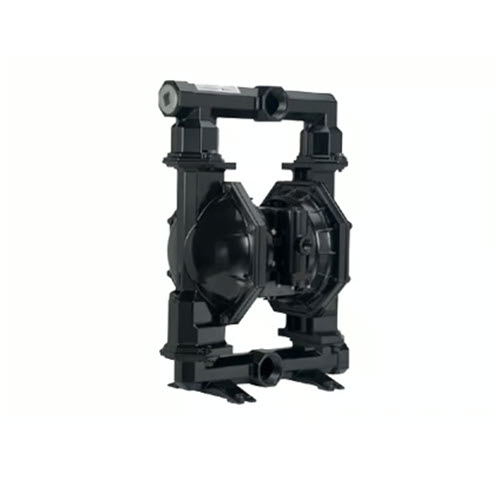

PD20A-ASS-KTT-B ARO Double Diaphragm Pump

PD20A-ASS-KTT-B of Ingersoll Rand ARO Series PX20X-XXX-XXX-B with Air motor/ Air Cap = Aluminum / Aluminum, Fluid Connection = 2 – 11-1/2 N.P.T.F. – 1, Seat = Kynar PVDF, Ball = PTFE and Diaphragm = PTFE / Santoprene.

Features:

The Ultimate in chemical resistant pump design.
Best ‘Total Cost of Ownership’ in the industry.
Quick Dump™ Technology – Non-icing/no-stall operation
Efficiency – Simul-Shift™ valve provides ultra-positive, reliable shift signal
Reliability – ARO’s patented ‘Unbalanced’ air valve ensures no-stall operation
Versatility – Broad range in materials of construction for optimum fluid compatibility
Environmentally Sound – Bolted construction for leak-free fluid handling and ribless design to eliminate cracking
Serviceability – Easier service through modular design

Accessories:

66312 Air Line Connection Kit: contains Piggyback Filter / Regulator, pipe nipple & 5’ section of hose
P39354-614 Fiter/Regulator
67237 Diaphragm Failure Detection Kit
67350-1 Cycle Counter Kit
67263 Continuous-Duty Muffler
67174-20 Screened Inlet Adapter Kit
637369 Air Section Service Kit for PX30R
637421 Air Section Service Kit for PX20A and PX20S
637309-TT Fluid Section Service Kit

Air Inlet 3/4 – 14 NPTF – 1
CCN Number 15222474
Connection Size 2″
Connection Type 2 – 11-1/2 NPTF – 1
Diaphragm PTFE / Santoprene
Discharge Volume Per Cycle 1.4 Gal (5.3 Lit)
Inlet Pressure (PSI) 120 psig (8.3 bar)
Liquid End Configuration Stainless Steel Fluid Caps & Manifold
Material Aluminum Air Motor/Cap
Maximum Flow (GPM) 172 GPM (651 LPM)
Maximum Working Pressure (PSIG) 120 psi (8.3 bar)

Max Suction Lift 14 Feet (4.2m)
Metal Parts Stainless Steel Hardware
Model Series 2” Metallic Expert Series
Quick Specs 2 IN EXP METALLIC DIAPH PUMP
Solids (Inches) 1/4″ (6.4mm)
Temperature Range 40° to 200° F (4° to 93° C)
Type Standard Pump
Valve Balls PTFE
Valve / Seat / O-Ring Kynar PVDF
