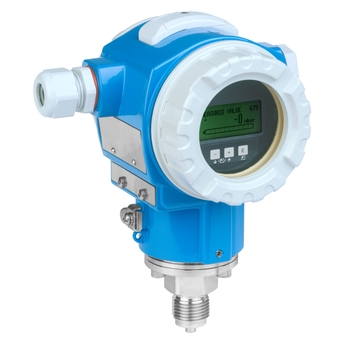

PMC71-186H2/0 (PMC71-AND1S1GEAAA) ENDRESS+HAUSER ABSOLUTE AND RELATIVE PRESSURE CERABAR SENSOR
$0.00
PMC71-186H2/0 (PMC71-AND1S1GEAAA) ENDRESS+HAUSER ABSOLUTE AND RELATIVE PRESSURE CERABAR SENSOR SPECIFICATIONS Approval: A Non-hazardous area Output; Operating: N PROFIBUS […]
Detalles
PMC71-186H2/0 (PMC71-AND1S1GEAAA) ENDRESS+HAUSER ABSOLUTE AND RELATIVE PRESSURE CERABAR SENSOR
SPECIFICATIONS
- Approval: A Non-hazardous area
- Output; Operating: N PROFIBUS PA; inside + LCD
- Housing; Cover Sealing; Cable Entry: D T14 Alu IP66/67 NEMA6P; EPDM; M12 plug, T14 = side cover
- Sensor Range; Sensor Overload Limit: 1S 40bar/4MPa/600psi gauge; 60bar/6MPa/900psi
- Calibration; Unit: 1 Sensor range; mbar/bar
- Process Connection: GE Thread ISO228 G1/2 G1/4(female), 316L
- Seal: A FKM
- Additional Option 1: A Not selected
- Additional Option 2: A Not selected
