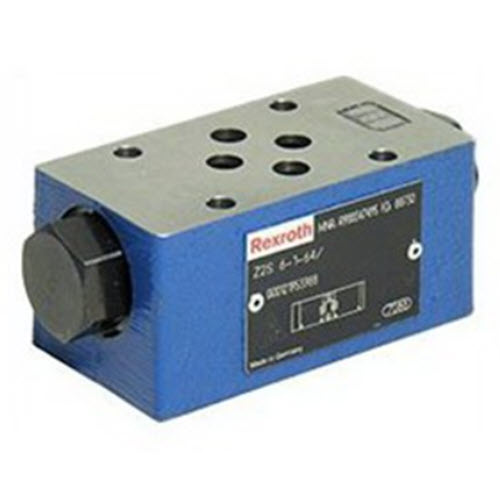

R900347504 Bosch Rexroth Hydraulics Z2S 6-1-6X/V
$0.00
Features
- Models Z2S are pilot operated check valves in a sandwich plate design. They provide line contact closure in one or two actuator ports, even during idle periods. Piloted to open, utilizing a pressure signal from the opposite actuator port provides a self-contained function.
- Sandwich plate valve for use in vertical stackings
- Porting pattern according to DIN 24340 form A (without locating hole)
- Porting pattern according to DIN 24340 form A (without locating hole)
- For the leakage-free blocking of one or two actuator ports, optional
- Various cracking pressures, optional
- With pre-opening, optional
- Check valve installation sets available individually
- Special versions upon request
Tech Specifications
Series: | Z2S – Pilot operated check valve |
Size: | 6 – D03 (NG6) |
Lock: | Leak-free blocking in channel A and B |
Cracking Pressure: | 1 – 21.7 psi (1.5 bar) |
Series: | 6X |
Seals: | V – Viton (FKM) |
Locating Pin: | Without |
Maximum Operating Pressure: | 4568 psi (315 bar) |
Approximate Weight: | 1.8 lbs (0.8 kg) |
