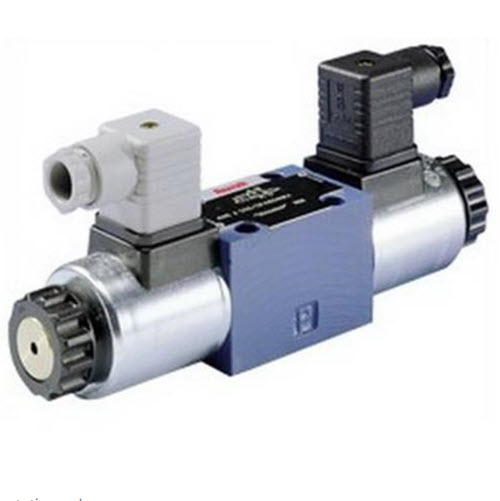

R900561288 Bosch Rexroth Hydraulics 4WE6J6X/EG24N9K4 4 – Port directional valve
$0.00
Features
- Directional valves type WE are solenoid operated directional spool valves. They control the start, stop, and direction of a flow. These directional valves basically consist of housing; one or two solenoids; control spool; and no, one, or two return springs. A full array of spools are possible with variations in voltage and electrical connection, all within the program. Flow and pressure rates cover a wide range of applications.
- The coil can be changed without having to open the pressure-tight chamber
- Without locating pin
- Without throttle insert and position switch
- Component series 6X, for subplate mounting
- Smooth switching characteristics, solenoid coil can be rotated by 90 deg
- Without throttle insert and position switch
- With concealed manual override
Tech Specifications
| Series: | Directional Control Valve |
| Fluid Type: | Mineral Oil (HL, HLP, HLPD, HVLP, HVLPD) According to DIN 51524, Bio-Degradable Hydraulic Fluids HETG According to VDMA 24568, HFC (Fuchs Hydrotherm 46M, Petrofer Ultra Safe 620) According to ISO 12922 |
| Size: | D03 (NG6) |
| Electrical Connection: | Without Mating Connector |
| Actuator Type: | Solenoid/Spring |
| Maximum Flow Rating: | 60 lpm (consult datasheet) |
| Voltage Rating: | 24VDC |
| Power Rating: | 30W |
| Spool Action: | By Springs |
| Spool Action: | By Springs |
