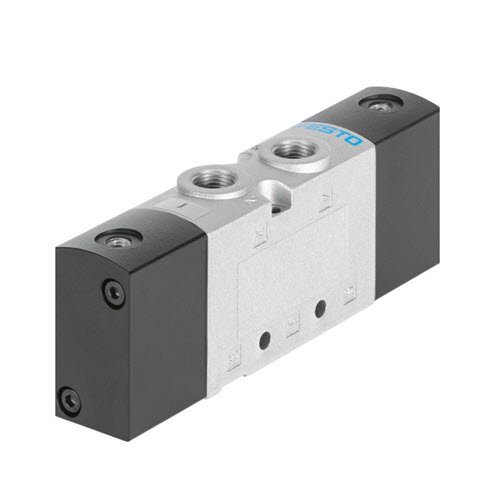

VUWS-L30-M52-M-G38 Festo 575608 Pneumatic valve

Technical Data

Valve function5/2, monostable
Actuation typePneumatic
Valve size31 mm
Standard nominal flow rate2300 l/min
Pneumatic working portG3/8
Operating pressure-0.09 MPa … 1 MPa
Operating pressure-0.9 bar … 10 bar
Structural designPiston gate valve
Reset methodMechanical spring
Certificationc UL us – Recognized (OL)
Nominal width9.4 mm
Exhaust air functionWith flow control option
Sealing principleSoft
Mounting positionAny
Manual overrideNone
Type of controlDirect
Pilot air supply portInternal
Flow directionReversible
Symbol00991029
LapOverlap
Pilot pressure MPa0.25 MPa … 1 MPa
Pilot pressure2.5 bar … 10 bar
Switching time off77 ms
On switching time17 ms
Explosion prevention and protectionObserve the information on the certificate Zone 1 (ATEX) Zone 2 (ATEX) Zone 21 (ATEX) Zone 22 (ATEX)
Operating mediumCompressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot mediaOperation with oil lubrication possible (required for further use)
Vibration resistanceTransport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6
Shock resistanceShock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
Corrosion resistance class (CRC)2 – Moderate corrosion stress
LABS (PWIS) conformityVDMA24364-B1/B2-L
Cleanroom classClass 6 according to ISO 14644-1
Temperature of medium-10 °C … 60 °C
Pilot mediumCompressed air as per ISO 8573-1:2010 [7:4:4]
Ambient temperature-10 °C … 60 °C
Product weight488 g
Type of mountingOptionally: On terminal strip With through-hole
Venting hole connectionNot ducted
Pilot air port 14G1/8
Pneumatic connection 1G3/8
Pneumatic connection 2G3/8
Pneumatic connection 3G3/8
Pneumatic connection 4G3/8
Pneumatic connection 5G3/8
Note on materialsRoHS-compliant
Seals materialHNBR NBR
Housing materialDie-cast aluminum Painted
Piston slide materialWrought aluminum alloy
Material of screwsSteel, nickel-plated
