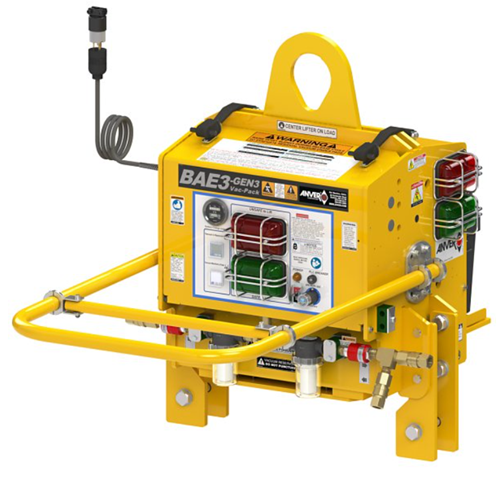

BAE3-GEN3-T Anver Self-Contained Battery Powered Vacuum Stations

ANVER’s BAE3-GEN3 Series Vac-Pack Vacuum Generator contains many of the same features as the standard VPE3-GEN3 Series. Designed for use with a wide assortment of vacuum pad attachments and lifter assemblies, these high quality Vac-Packs are ruggedly designed for heavy production use. Units are available with heavy duty frames or for mounting remotely. The BAE3-GEN3 Series includes a rechargeable, heavy duty 12 volt DC 105 Amp hour battery, making it suitable for handling non-porous loads. It is commonly used for special applications where AC power is not readily available.

Safety Features:

• Load Sensing Lifting Bail with Safety Lock-Out
  Pendant controls are only active when the lifter is lowered completely and there is no load on the bail.  This eliminates the risk of accidental release of a suspended load by the operator. (Feature not present on the BAE3-GEN3-RD Series, which is a standalone version, or the BAE3-GEN3-T, which is a tilter version.)
• Vacuum Control
  A solid-state Vacuum Control combines all the required vacuum generator controls in one rugged unit. This controls all vacuum pump functions, safety lights and is fitted with a standard audible vacuum leakage warning system.
• Energy Saver Technology
  A vacuum-controlled valve shuts off the vacuum pump when the pre-set vacuum level is reached, reducing wear and tear on the pump.
• Audible Vacuum Leakage Warning System
  Integrated electronically controlled vacuum leakage sensor monitors vacuum level and will sound an alarm if a slow vacuum leak is present when the vacuum level drops to a pre-determined set point.
• Vacuum Retention
  The system includes an internal check valve to stop leakage of vacuum in the event of a power failure (non-porous loads).  A 5.4 gallon (1247 cu. in.) vacuum reservoir assists in maintaining a safe vacuum level during a power failure (non-porous loads).

• Additional Features:

• Front Control Panel and Gauges
  All gauges, lights, and power switches are mounted on the front of the control panel. The two vacuum gauges on the face of the panel display the level of vacuum in the manifold and in the reservoir.
• Indicator Lights – Front, Left & Right Side
  Green light indicates “Safe” vacuum level.
  Red light indicates “Unsafe” vacuum level.
  White light indicates “Power On.”
• Battery Charger (CHARGER-BAE) (Sold Separately)
  The battery charger is designed specifically for today’s high performance, deep-cycle lead-acid batteries. The straight blade plug accommodates a standard extension cord using a 110V AC wall outlet.

  Ergonomic Control Handlebar Easy to grasp, large loop handlebar enables the operator to easily and safely maneuver the attached load without touching the load itself. Handlebar can be adjusted for smaller size loads. Twist-Lock Power Cord Connector The twist-lock receptacle prevents accidental disconnection from the power source.  Both male and female halves are supplied. Maintenance: Front & Rear Panel Cover The front and rear covers pivot open for easy access to all components. Air Filter Over-sized air filter provided inside of front cover features a screw-on clear filter bowl for easy filter inspection and cleaning. Removable Battery Case Cover Standard battery case with strap and cover provides easy access to the battery, which is mounted on a rugged mounting bracket(s) bolted directly to the Vac-Pack. Battery Cable Plugs Allows easy connection and disconnection to and from the Vac-Pack during battery maintenance or replacement. Vacuum Pump(s): The (3) diaphragm type vacuum pumps at 7.5 CFM total are driven by 1/16 h.p. 12 volt D.C. motor and generate 24” Hg. (at sea level) of vacuum. The ANVER Vacuum Control Module maintains a safe vacuum level by cycling the vacuum pump motor on or off as required, which extends both vacuum pump life and battery charge. Battery Specification: 79 Amp hour, deep-cycle battery can provide up to 8 hours of continual operation in many applications. Options: Optional Moisture Traps (WT-VP3-[Series]) For damp applications: prevents saturation of filter and possible damage to pump. Not for handling wet loads. Mounts on vacuum manifold. *Optional Generator Configurations and Voltages Available: In reference to our standard line of Vac-Packs noted above, other configurations, voltages and set-ups are available. Contact ANVER for further information and application requirements.



  Specifications for Lifting Frames and Pad Attachments:

Generator Series Model No.	BAE3-GEN3-L	BAE3-GEN3-S	BAE3-GEN3-H	BAE3-GEN3-HD	BAE3-GEN3-X
Rated Load Capacity [lbs (kg)]	2300 (1043)	6900 (3129)	7000 (3175)	10000 (4535)	10000 (4535)
Unit Weight [lbs (kg)]	474 (215)	474 (215)	474 (215)	474 (215)	474 (215)
A Max. Headroom [in. (mm)]	30.13 (765)	31.5 (800)	31.5 (800)	31.5 (800)	28 (711)
B Handlebar Height [in. (mm)]	12.44 (316)	13.81 (351)	13.81 (351)	13.81 (351)	12.31 (313)
C Unit Width [in. (mm)]	25.38 (645)	26.13 (664)	26.13 (664)	26.13 (664)	26.13 (664)
D Maximum Handlebar Length [in. (mm)]	34 (864)	34 (864)	34 (864)	34 (864)	34 (864)
E Hardware Centers [in. (mm)]	9 (229)	22.38 (568)	22.38 (568)	23.38 (594)	23.38 (594)
F Fits Tube Size [in. (mm)]	3 x 3 (76 x 76)	3 x 6 (76 x 152)	5 x 7 (127 x 178)	5 x 7 (127 x 178)	8 x 6 (203 x 152)
G Vac-Pack Depth [in. (mm)]	18.84 (479)	18.84 (479)	18.84 (479)	18.84 (479)	18.84 (479)
H Hardware Spacing [in. (mm)]	N/A	N/A	N/A	N/A	4 (102)
(3) Total Pump Capacity SCFM	7.5	7.5	7.5	7.5	7.5
Vacuum Level at Sea Level [in. Hg ]	24	24	24	24	24
Energy Saver / Quiet Automatic Shut-Off	YES	YES	YES	YES	YES
Battery Part Number	AGM-12V-75	AGM-12V-75	AGM-12V-75	AGM-12V-75	AGM-12V-75

Specifications for Remote Mounting:



Generator Series Model No. BAE3-GEN3-R Unit Weight [lbs (kg)] 270 (123) A Max. Headroom [in. (mm)] 23.63 (600) B Unit Width [in. (mm)] 29.31 (744) C Unit Depth [in. (mm)] 25.38 (645) Vacuum Level at Sea Level [in. Hg] 24 Energy Saver / Quiet Automatic Shut-Off YES Battery Part Number AGM-12V-75 Operator Control Style Options Radio Control or Pendant Control (Electric Self-Cycling not compatible with this model)

Specifications for Tilters:

Generator Series Model No.			BAE3-GEN3-T
Unit Weight [lbs (kg)]			270 (123)
A Max. Headroom [in. (mm)]			22.44 (569)
B Unit Width [in. (mm)]			18.88 (479)
C Unit Depth [in. (mm)]			25.38 (645)
Hardware Mounting Pattern	D x F	G Thread: (4) M20x2.5	12 x 8 (305 x 203)
	E x F	H Thread: (4) M10x1.5	14 x 8 (356 x 203)
Vacuum Level at Sea Level [in. Hg]			24
Energy Saver / Quiet Automatic Shut-Off			YES
Battery Part Number			AGM-12V-75
Operator Control Style Options			Radio Control or Pendant Control (Electric Self-Cycling not compatible with this model)
