Features:
- Energy Saver Technology
A vacuum-controlled valve shuts off the vacuum pump when the pre-set vacuum level is reached, reducing wear and tear on the pump.
- Front Mounted Controls and Gauges
Vacuum gauge is mounted on front cover for continuous monitoring by operator. The power switch includes built-in circuit breaker.
- Ergonomic Adjustable Front Handlebar
Easy to grasp, large loop handlebar enables the operator to easily and safely maneuver the attached load without touching the load itself. Handlebar can be adjusted for smaller size loads.
- Slide Control Valve with Push-Button Safety Lock
The slide valve assembly allows vacuum attach and release and is mounted to the front handlebar for convenient access by the operator. The push-button safety lock is to keep the slide valve in the attach position while lifting a load to prevent accidental load release.
- Vacuum Check Valve and Reservoir
A check valve with vacuum reservoir helps to maintain vacuum if electrical power is interrupted, for safe handling of non-porous loads.
- 4 ft (1.2 m) Power Cord with Twistlock Plug and Receptacle
Both Twistlock plug and receptacle are provided to prevent accidental power cord separation.
- Vacuum Leakage Sensor and Warning System
The VLS is a battery powered unit consisting of solid state circuitry with microprocessor, pressure sensor, LCD digital display in inches of Hg, and audible and visual warning signs (horn and red light). System is plumbed to the Vac-Pack and monitors vacuum level triggering the alarm in the event of a leakage in vacuum level (10% leakage for VLS / 20% leakage for VLS-20).
|
|
Maintenance:
- New Redesign Featuring New Vacuum Pump
and updated for ease of inspection and replacement of key components, using quick disconnect and reusable fittings.
- Easily Accessible Dual Vacuum Filters
(2) Hi capacity air filters provides protection against pump damage. They are mounted on the front handlebar for easy routine inspection and cleaning.
|
|
General:
- Frame Construction

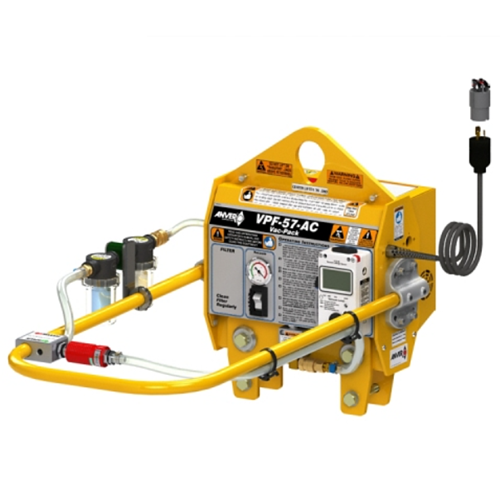

The VPF-57-AC Series has a fully welded frame with a vacuum reservoir and a lifting bail and beam mounting hardware.
• Standard for 3”x3” beam [9” hardware centers] with a structural lifting capacity rating up to 2,200 lbs (998 kg).
• Heavy Duty for 3”x6” beam [9” hardware centers] and reinforced lifting bail with a structural lifting capacity rating up to 4,400 lbs (1,996 kg).
- Versatility
For larger load lifting capability or alternate power requirements, ANVER offers electric powered and self-powered mechanical vacuum generators, all with standard mounting designs for interchangeability.
|
