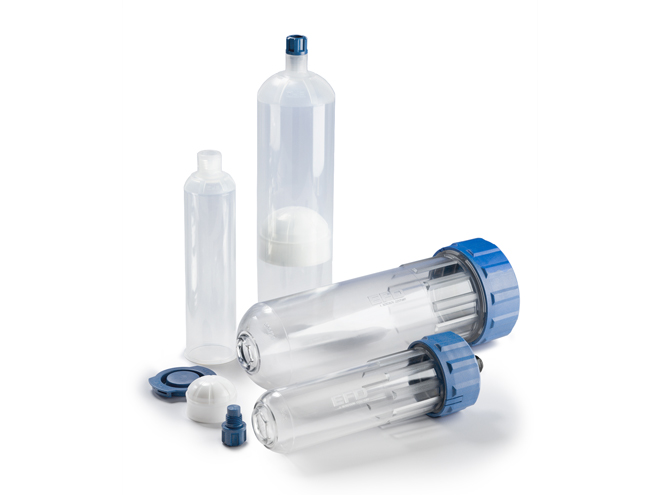

7014088 NORDSON EFD OPTIMUM CARTRIDGES CLEAR 32oz (960ml), NO PISTON

7014088 NORDSON EFD OPTIMUM CARTRIDGES CLEAR 32oz (960ml), NO PISTON

Optimum® cartridges are molded from a proprietary formulation of Polypropylene and provide exceptional clarity, chemical compatibility, impact strength, and dimensional stability.

FEATURES:

• The Zero Draft™ design improves fluid flow characteristics and reduces turbulence by ensuring the internal diameter is consistent from top to bottom with no taper restricting piston travel or affecting process results.
• Unique external ribs at the outlet end prevent splitting when installing fittings or nozzles. Precision molded threads and a tapered counterbore at the 0.25” NPT outlet create a secure, leakproof seal.
• A molded hex around the outlet fits into a matching orifice on the cartridge retainer for tool-free fitting and nozzle installation.
• Optimum cartridges are compatible with most retainers on the market today.
