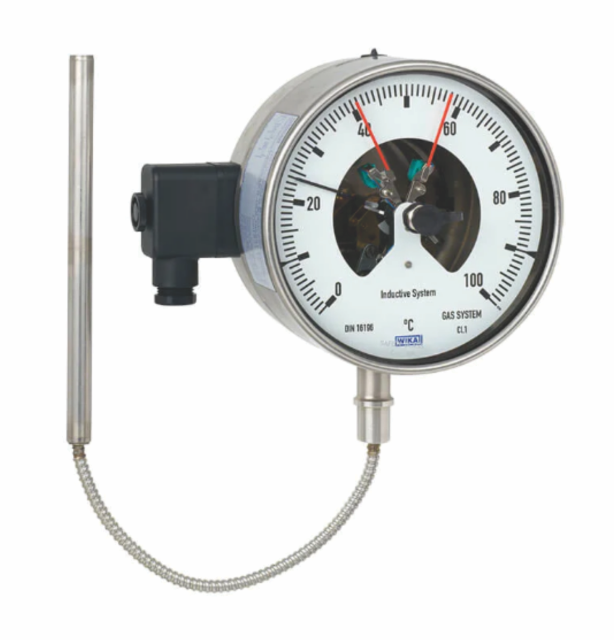

76229444 WIKA Gas Actuated thermometer with capillary

Description:

TGS73.100/160 Gas-actuated thermometer with switch contacts stainless steel version.
Gas-actuated thermometer with switch contacts. stainless steel version. Model: TGS73

Specifications: (According to WIKA data sheet: TV 27.01)

• switch: magnetic snap action switch, model 821
• 1st Switch Operation: makes (1)
• 2nd Switch Operation: makes (1)
• Electrical Connection: terminal box
• Nominal size: 160
• Unit: °C
• Scale Range: 0 °C … 100 °C
• Design of Connection: 4, compression fitting, sliding on stem
• Process Connection: 1/2″ NPT
• Connector position: back mount, with capillary
• Stem Diameter: 6 mm
• Insertion length L1: 140 mm
• Capillary: standard capillary stainless steel 1.4571
• Capillary Length: 10 m
• Dampening: Liquid dampening
• Accuracy Class: class 1 per DIN 16196
• Design of case mounting: Surface mounting flange, stainless steel
• Case: Stainless steel
• Stem Material: stainless steel 1.4571
• Permissible ambient temperature: -20 … +60 °C
• Manufacturer logo: *WIKA*
• Serial number: with Serial number
• QR code with extended serial number on dial
