MFLX06434-82 Avantor MasterFlex 06434-82 Precision pump tubing

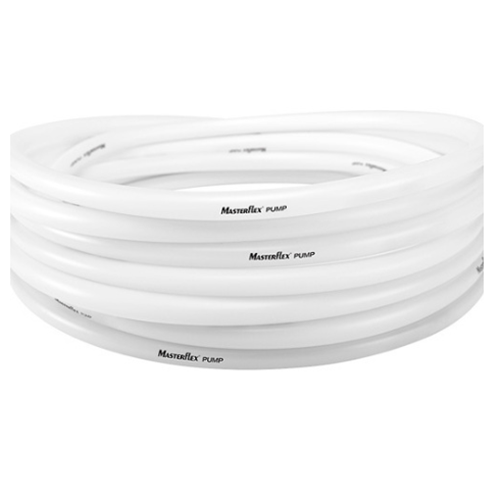

Masterflex® I/P® Precision Pump Tubing, C-Flex® ULTRA, I/P 82; 25 ft
Catalog # MFLX06434-82

Ultra performance for ultrapure applications.

Genuine Masterflex® tubing undergoes robust testing to provide optimal performance/pump life hours with peristaltic pump equipment
Precision extruded to tight tolerances for high repeatability, accuracy, and reproducibility
Global market leader in range of formulations for most extensive chemical compatibility
Single-use custom lengths and configurations available to minimize downtime
Regulatory Approvals to match your unique application
Longest pumping life of any C-Flex® formulation

I/P® 82 tubing has a 1/2” (12.7 mm) inner diameter
Accepts 1/2” hose barb for tubing connection

Masterflex® C-Flex® ULTRA Precision pump tubing features extremely low spallation with a smooth inner surface for reduces residue and maintain fluid purity. This tubing will maintain flexibility over a wide temperature range. Heat sealable and weldable, C-Flex ULTRA tubing is ideal single-use assemblies, pharmaceutical and high purity applications.

For custom tubing lengths and configurations, please contact us. We can provide the tubing type, length, and quantity you need.

Maximum Flow Rate:
13000 ml/min
Tubing int.Ø:
12.70 mm (0.500″)
Max. Pressure:
1.4 bar (20 psi)
Max. Temperature:
121 °C (250 °F)
Pump series:
I/P
Description:
I/P® Precision Pump Tubing, C-Flex® ULTRA, I/P 82; 25 ft
Model:
06434-82
Length per pack:
7.6 m (25 ft.)
Max. temperature (dynamic):
100 °C (212 °F)
Min. temperature (dynamic):
–40 °C (–40 °F)
Regulatory approvals:
ADCF;European Pharmacopoeia;Non-DEHP;RoHS;USP
Sterilisation method autoclave:
Yes
Sterilisation method EtO:
Yes
Sterilisation method gamma:
Yes
Suction lift H₂O:
7 m (23 ft.)
Min. Temperature:
–45 °C (–50 °F)
Max. Vacuum:
510 mm Hg (20″ Hg)
Cat. No.:
MFLX06434-82
I/P Masterflex Tubing Size:
82
Tubing material:
C-Flex® ULTRA
Hose barb size:
0.5″
