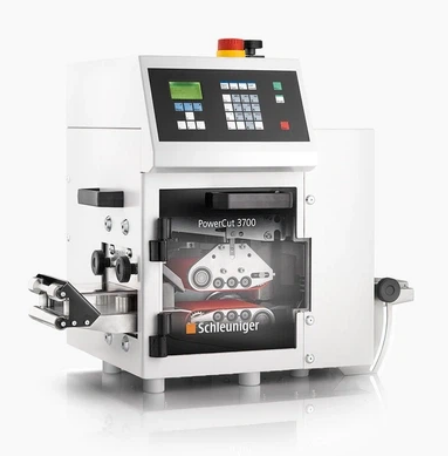

CXM-PC3700 PowerCut 3700

CXM-PC3700 PowerCut 3700
The PowerCut 3700 cuts large wire, round and flat cable, Glass Optical Fiber, tubing material and foil with cross-section up to 70 mm² (AWG 2/0) and diameter up to 25 mm (0.98″)

SPECIFICATIONS:


• Wire length/standard mode: 0.1 mm (0.004”) – 999‘999 mm (39,370“)
• Wire outer diameter range: 0.0196 – 1 in
• Interfaces: RS 232, foot pedal, standard prefeed and hotstamp Optional: PPI
• Raw material diameter max.: 25 mm, tubes: 20 mm
• CE conformity: The PowerCut 3700 fully complies with all CE and EMC equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
• Feed rate: 4.5 m/s
• Raw material width max.: 82 mm
• Wire outer diameter min.: 0.5 mm
• Wire cross section: 0.5 – 70 mm²
• Wire length max.: 999999 mm
• Wire outer diameter max.: 25 mm
• Wire cross section min.: 0.5 mm²
• Wire cross section max.: 70 mm²
• Drive system: Belt
• Noise level: <70 dB
• Electrical connection: 100VAC to 240VAC, 50/60Hz
• Weight: 65 kg
• Dimensions/length: 640 mm
• Dimensions/width: 440 mm
• Dimensions/height: 530 mm
