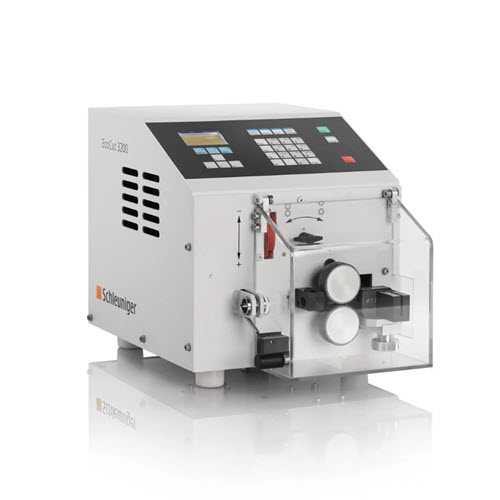

EcoCut 3200 Schleuniger Cutting Machine

Raw Material Diameter	Tube Cutting Head Max. 12.7 mm (0.5”) Cable Cutting Head Max. 10 mm (0.39″)
Conductor Cross Section	Stranded Wire Max. 6 mm² (8 AWG) Solid Wire Max. 4 mm² (12 AWG)
Length Increment	0.1 mm (0.004″)
Feed Rate	Maximum 3.20 m/s (10.6 ft/s)
Interfaces	Standard: Prefeeder, Hotstamp, RS232, Foot pedal Optional: Postfeed interface (CableCoiler 500)
Options	Tube guides in 0.5 mm increments from 2.0 – 13 mm. Custom tube guides, custom blades
Noise Level	<70 dB (A)
Power Supply	100 V, 115 V, 230 V or 240 V (50 – 60 Hz)
Dimensions (L x W x H)	400 × 250 × 260 mm (15.7” x 9.8” x 10.2”)
Weight	17 kg (38 lbs.)
CE Conformity	The EcoCut 3200 fully complies with all CE and EMC equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
Important Note	Schleuniger recommends that wire / tube samples be submitted in cases where there is doubt as to the processing capabilities of a particular machine.
