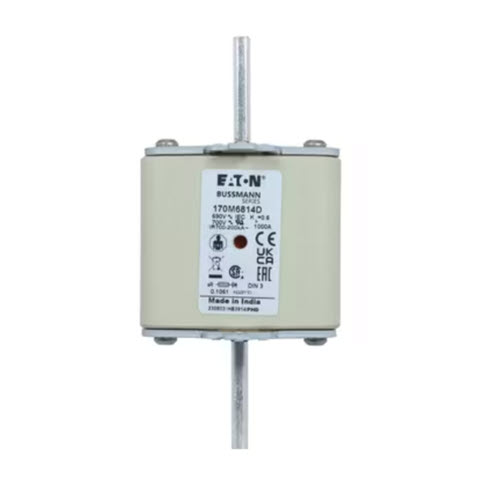

170M6814D Eaton Bussmann Fuse-link high speed 1000 A

Product Name
Eaton Bussmann series high speed square body fuse
Catalog Number
170M6814D
UPC
051712335270
EAN
5027590463287
Product Length/Depth
150 mm
Product Height
87 mm
Product Width
71 mm
Product Weight
1112 g
Compliances
CE Marked
RoHS Compliant
Certifications
IEC Rated
UL Recognized

Electrical data

Amperage Rating
1000 A
Voltage rating
690 V (IEC), 700 V (UL)
Voltage type
AC
Clearing (I2T)
985000 at 660 V
Pre arc (I2T)
140000
Watt losses
56 W
Breaking capacity
200 kA
Class
Class aR

Product specification

Application
Semiconductor, DC Common bus, DC drives, power converters/rectifiers
Fuse type
DIN 43620
Bladed
Fuse indicator
Combination fuse status indicator
Fuse size
3
Fitted with:
Dual indicator
