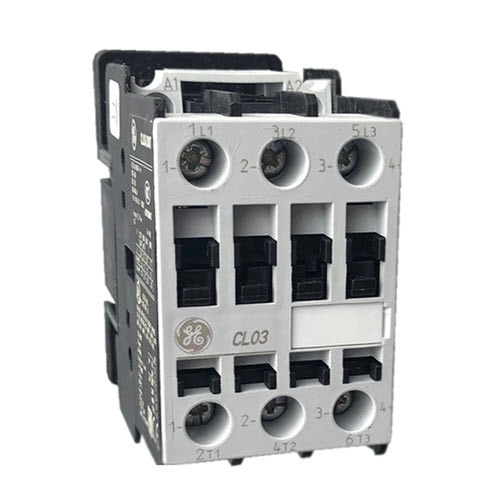

CL03 General Electric Industrial Contactor

CL03 General Electric Industrial Contactor

GE Industrial CL03 contactor that is rated for 25 AMPS AC-3 (32 AMPS AC-1), 15 H.P. @ 460 volt 3-phase and has an AC rated coil (must specify coil voltage above).

This 3 pole contactor comes with screw terminals and mounts on standard 35MM DIN rail for quick installation and removal.

The GE CL03 contactor is IEC rated and is the suggested replacement for the CL25 contactor and optional RT1 overload relays can be mounted to the load side for complete motor protection.

Specifications

• Coil Voltage: AC rated coil
• AMP rating: 25 AMP AC-3 / 32 AMP AC-1
• Horsepower: 15 H.P. @ 460 volt / 7.5 H.P. @ 230 volt
• Number of Power Poles: 3 Poles
