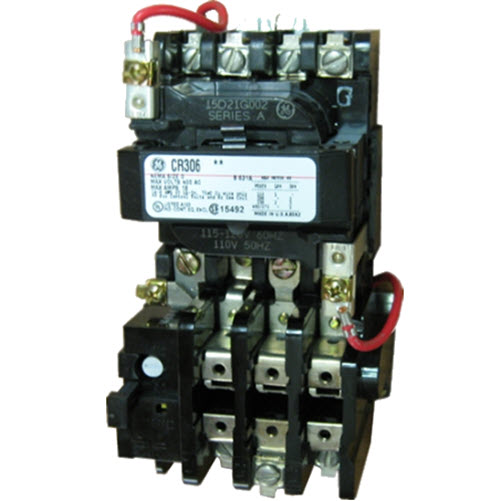

CR306CO** CR306C0** GE General Electric 3 Pole Magnetic Motor Starter
$0.00
GE’s CR306C0 full voltage (600-Volt maximum) magnetic motor starter has an encapsulated coil and a 3-leg overload relay to protect against overloads in all phases. It is on standard specifications of major manufacturers. The line offers features and benefits most asked for by users. Forms available include reversing and nonreversing, two-speed, and combination, sizes 00-9.
The CR306C0 starters have a wide range of accessories including auxiliary contacts, coils, fifth-pole addition, vertical and horizontal mechanical interlocks, surge suppressors, control circuit fusing, NEMA Type enclosures, push buttons, selector switches, indicating lights, control transformers, space heaters, and more.
Technical Specifications
Toolless contactor disassembly (Sizes 00-4) allows quick access for inspection and maintenance. Just release two retainers and pull a clip to get at magnet, coil, and contacts.
Current-carrying components contact tips are weld-resistant silver cadmium oxide (fine silver on sizes 00 and 0 only). Contacts are installed in a wedge configuration for positive make with minimum bounce.
Visual trip indicator with manual reset to avoid surprise restarts. Reset occurs on arm upstroke so a tripped condition can’t be overridden by holding the arm down.
Detalles
CR306CO** CR306C0** GENERAL ELECTRIC MOTOR STARTER
GE CR306C0 full voltage (600-Volt maximum) magnetic motor starter has an encapsulated coil and a 3-leg overload relay to protect against overloads in all phases. It is on standard specifications of major manufacturers.
The line offers features and benefits most asked for by users. Forms available include reversing and non reversing, two-speed, and combination, sizes 00-9.
The CR306C0 starters have a wide range of accessories including auxiliary contacts, coils, fifth-pole addition, vertical and horizontal mechanical interlocks, surge suppressors, control circuit fusing, NEMA Type enclosures, push buttons, selector switches, indicating lights, control transformers, space heaters, and more.
Technical Specifications
- Toolless contactor disassembly (Sizes 00-4) allows quick access for inspection and maintenance. Just release two retainers and pull a clip to get at magnet, coil, and contacts.
- Current-carrying components contact tips are weld-resistant silver cadmium oxide (fine silver on sizes 00 and 0 only). Contacts are installed in a wedge configuration for positive make with minimum bounce.
- Visual trip indicator with manual reset to avoid surprise restarts.
