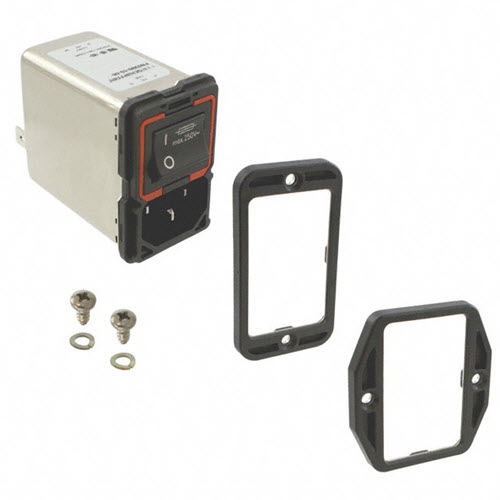

FN9280-10-06 Schaffner EMC Power Entry Module Filtered

Technical Specifications Maximum continuous operating voltage 250 VAC, 50/60 Hz Flammability corresponding to UL 94 V-2 or better Operating frequency DC to 400 Hz Rated currents 1 to 10 A Temperature range (operation and storage)– 25°C to +85°C (25/85/21) Design corresponding to UL 1283, CSA 22.2 No. 8 1986, EN 60939, EN 60950, EN 60601-1, UL 544, EN 60320 Protection category IP 40 according to IEC 60529 (front side) Switch ratings Europe (ENEC) 10 A (4 A), 250 VAC* Rated currents 1 to 10 A @ 40°C max Mechanical life 50,000 cycles Electrical specifications Inrush current 82 A 6,000 on-off operations according to UL 1054 10,000 on-off operations according to ENEC Fuse holder 2 fuses (Ø5 x 20 mm) max. 250 V (certified to IEC 60127-6), power acceptance 1.6W @ Ta 23°C per pole Terminals/Housing Spare part mounting flanges available with order number: SAP427532
