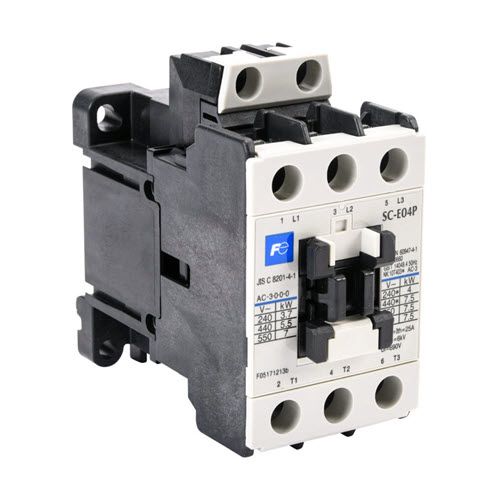

SC-E04P-220VAC Fuji Electric 18A 3 NO power poles 240 VAC 60Hz 220 VAC 50Hz coil voltage

Brand / Series: Fuji Electric – SC-E Series
Model: SC-E04P-220VAC
Type: IEC magnetic contactor
Number of poles: 3 poles (3P)
Main contacts: 3 Normally Open (NO)

Electrical Ratings

Rated operational current (Ie): 18 A
Maximum operating voltage: up to 690 V AC
Coil voltage:

220 V AC @ 50 Hz
240 V AC @ 60 Hz

Motor Power Ratings (approx.)

5 HP @ 200–240 V AC
10 HP @ 440–600 V AC

Mechanical / Physical Data

Compact IEC design
DIN rail mounting (typical)
Approximate width: ~43 mm
Weight: ~0.35–0.45 kg

Certifications

UL Listed / Recognized
CE marking
RoHS compliant
