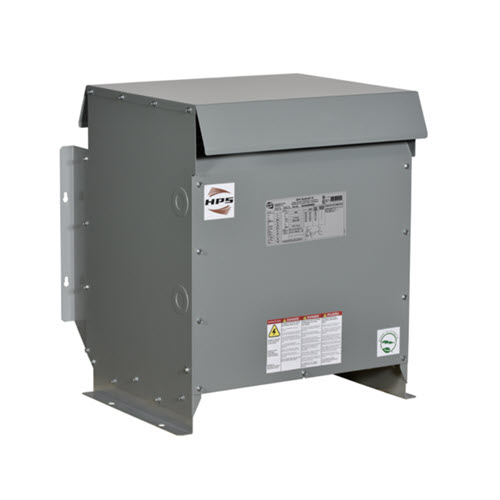

SG3A0030KY Hammond Power Solutions Tansformador Sentinel G (Gen. 3) Series 3PH 30kVA 480D-380Y/220V
$0.00
Specifications
Brand: Hammond Power Solutions
Connection type: Lug/Pad
Dimensions: 23.8 in L x 25.8 in W x 28.8 in H, 28.8 in H x 25.8 in W x 23.8 in D
Efficiency: 98.23, 98.23 %, 98.23%
Enclosure Type: DH2-N3R – Indoor/Outdoor, NEMA 3R
Frequency Rating: 60, 60 Hz
Mounting type: Ceiling/Floor
Phase: 3, 3 ph
Power Rating: 30, 30 kVA
Primary Voltage: 480 Delta VAC
Secondary Voltage: 430Y/248 VAC
Temperature Rating (Degrees F): 30, 30 deg C
Type: Energy Efficient General Purpose
UNSPSC: 39121001
UPC: 00803423127947
Description
Hammond Power Solutions SG3A0030KY G Distribution Transformer
HPS Sentinel G Distribution Transformer, Energy Efficient General Purpose, 480 Delta VAC Primary, 430Y/248 VAC Secondary, 30 kVA, 60 Hz, 3 ph, Lug/Pad, Ceiling/Floor Mount, DH2-N3R – Indoor/Outdoor, 30 deg C, 98.23 % Efficiency, 23.8 in L x 25.8 in W x 28.8 in H
Additional Description: HPS -SG3A0030KY D16/NRC19 3PH 30kVA 480D-380Y/220V AL 60Hz 150C 3R
Catalog Description: 600V Class Three Phase DOE2016 and NRCan 2019 Compliant Energy Efficient Distribution Transformer, 480D PV, 380Y/220, 400Y/231, 416Y/240, 430Y/248 SV, 30 kVA, 3PH, Aluminum Wound
Item Features
- Aluminum winding
- Meets latest U.S. DOE 10 CFR part 431 efficiency standards
- Manufactured from quality non-aging, cold rolled, silicon steel laminations using state-of-the-art equipment
- Cores are precision cut to close tolerances which eliminates burrs and improves performance
- Core is coated to prevent the ingress of moisture
- Precision wound with copper or aluminum conductors that are electrically balanced to minimize axial forces during short circuit conditions
- Robust interface between core and coils for better short circuit performance
- Standard 150 deg C temperature rise and 220 deg C insulation class
- ANSI 61 gray, UL50 enclosure finish
- Front accessible separate high and low voltage terminals, connectors suitable for aluminum and copper are provided for easy cable installation
- Side knockouts standard on all units bottom entry provision conduit entry
- Typically 3.5% to 6.5% impedance
- Generation 3 current design
- Delta primary, wye-N secondary phase
- 40 deg C maximum temperature
- 380Y/220, 400Y/231, 416Y/240, 430Y/248 VAC secondary voltage
- ST-20 standards sound level
- SCD 52 standard primary taps
- DH2 case style
