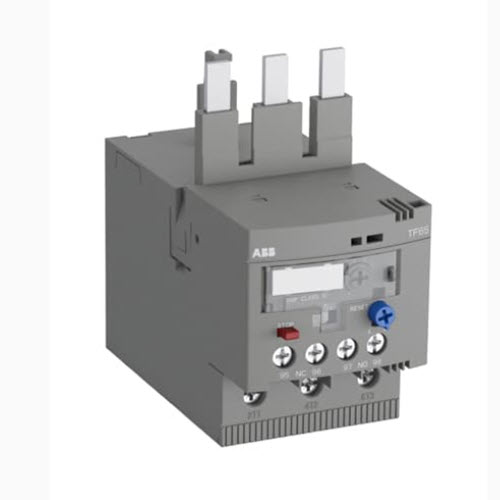

TF65-40 ABB 1SAZ811201R1003 Thermal Overload Relay 30 – 40 A

The TF65-40 thermal overload relay is an economic electromechanical protection device for the main circuit. It offers reliable and fast protection for motors in the event of overload or phase failure. The device has trip class 10. Further features are the temperature compensation, trip contact (NC),
signal contact (NO), automatic- or manual reset selectable, trip-free mechanism, STOP function and a trip indication. The overload relays are connected directly to the block contactors. Single mounting kits are available as accessory.

DimensionsProduct Net Width:
54.9 mm
Product Net Height:
101.4 mm
Product Net Depth / Length:
106.9 mm
Product Net Weight:
0.372 kgTechnicalSetting Range:
30 … 40 A
Rated Operational Voltage:
Auxiliary Circuit 600 V AC/DC
Main Circuit 690 V AC
Main Circuit 440 V DC
Rated Operational Current (Ie):
40 A
Rated Frequency (f):
Auxiliary Circuit 50 Hz
Auxiliary Circuit 60 Hz
Auxiliary Circuit DC
Main Circuit 50 Hz
Main Circuit 60 Hz
Rated Impulse Withstand Voltage (Uimp):
Auxiliary Circuit 6 kV
Main Circuit 8 kV
Rated Insulation Voltage (Ui):
690 V
Number of Poles:
3
Number of Auxiliary Contacts NC:
1
Number of Auxiliary Contacts NO:
1
Number of Protected Poles:
3
Conventional Free-air Thermal Current (Ith):
Auxiliary Circuit NC 6 A
Auxiliary Circuit NO 4 A
Rated Operational Current AC-15 (Ie):
(120 V) NC 3 A
(120 V) NO 0.5 A
(240 V) NC 3 A
(240 V) NO 0.5 A
(400 V) NC 0.75 A
(400 V) NO 0.5 A
(500 V) NC 0.75 A
(500 V) NO 0.5 A
Rated Operational Current DC-13 (Ie):
(125 V) NC 0.55 A
(125 V) NO 0.55 A
(24 V) NC 1.25 A
(24 V) NO 1.25 A
(250 V) NC 0.27 A
(250 V) NO 0.27 A
(500 V) NC 0.15 A
(500 V) NO 0.15 A
(60 V) NC 0.55 A
(60 V) NO 0.55 A
Degree of Protection:
Housing IP20
Main Circuit Terminals IP10
Pollution Degree:
3
Connecting Capacity Auxiliary Circuit:
Flexible with Ferrule 1/2x 0.75 … 2.5 mm²
Flexible with Insulated Ferrule 1x 0.75 … 2.5 mm²
Flexible with Insulated Ferrule 2x 0.75 … 1.5 mm²
Flexible 1/2x 0.75 … 1 mm²
Flexible 1/2x 1 … 2.5 mm²
Rigid 1/2x 0.75 … 4 mm²
Connecting Capacity Main Circuit:
Flexible with Ferrule 1/2x 2.5 … 10 mm²
Flexible with Ferrule 1x 2.5 … 35 mm²
Flexible with Insulated Ferrule 1x 2.5 … 35 mm²
Flexible with Insulated Ferrule 1/2x 2.5 … 10 mm²
Flexible 1/2x 2.5 … 16 mm²
Flexible 1x 2.5 … 35 mm²
Rigid 1/2x 2.5 … 16 mm²
Rigid 1x 2.5 … 35 mm²
Tightening Torque:
Auxiliary Circuit 1 … 1.2 N·m
Main Circuit 4.0 … 4.5 N·m
Wire Stripping Length:
Auxiliary Circuit 9 mm
Main Circuit 17 mm
Recommended Screw Driver:
Auxiliary Circuit Pozidriv 2
Main Circuit Pozidriv 2
Mounting Position:
1 … 6
Power Loss:
at Rated Operating Conditions per Pole 2.1 … 3.7 W
Suitable For:
AF40
AF52
AF65
Standards:
IEC/EN 60947-1
IEC/EN 60947-4-1
IEC/EN 60947-5-1
UL 60947-1
UL 60947-4-1
IEC 60335-2-40 A2LTechnical UL/CSAMaximum Operating Voltage UL/CSA:
Main Circuit 600 V AC
Contact Rating UL/CSA:
(NC:) B600
(NC:) Q600
(NO:) Q600
(NO:) D300
Connecting Capacity Main Circuit UL/CSA:
Flexible 1x 12-2 AWG
Flexible 2x 12-6 AWG
Stranded 1x 12-2 AWG
Stranded 2x 12-6 AWG
Connecting Capacity Auxiliary Circuit UL/CSA:
Flexible 1/2x 18-12 AWG
Stranded 1/2x 18-12 AWG
Tightening Torque UL/CSA:
Auxiliary Circuit 9 … 11 in·lb
Main Circuit 35 … 40 in·lbEnvironmentalAmbient Air Temperature:
Operation -40 … +70 °C
Operation Compensated -40 … +70 °C
Storage -50 … +80 °C
Ambient Air Temperature Compensation:
Yes
Maximum Operating Altitude Permissible:
2000 m
Resistance to Shock acc. to IEC 60068-2-27:
11 ms Pulse 25g
Resistance to Vibrations:
5g 3 … 150 Hz
RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act – TSCA:
Toxic Substances Control Act (TSCA) declaration for ContactorsMaterial ComplianceConflict Minerals Reporting Template (CMRT):
CMRT – Conflict Minerals Reporting Template
REACH Declaration:
REACH – Letter of Confirmation for block contactors, contactor relays, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories
RoHS Information:
RoHS II declaration for block contactors, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories
RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act – TSCA:
Toxic Substances Control Act (TSCA) declaration for Contactors
WEEE B2C / B2B:
Business To Business
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)Circular ValueEnd of Life Instructions:
End of life instruction TF65 / TF96 / TF140Eco TransparencyEnvironmental Product Declaration – EPD:
Environmental Product Declaration PEP TF65/TF96
Environmental Information:
Product Environmental Information TF65 thermal overload relaysCertificates and DeclarationsA2L Certificate – IEC:
A2L Certificate – T16, TF42, TF65, TF96 series – Thermal Overload Relays
ABS Certificate:
ABS Certificate – TF65, TF96 – Thermal Overload Relays
ATEX Certificate:
Atex Certificate – TF65
BV Certificate:
BV Certificate – T16, TF42, TF65, TF96 – Thermal Overload Relays
CB Certificate:
CB Certificate – TF65, TF96 – Thermal Overload Relay
CQC Certificate:
CQC Certificate, Thermal Overload Relay, TF65, TF96, Made in China
Declaration of Conformity – CCC:
2020980309000291
Declaration of Conformity – CE:
EU Declaration of Conformity – TF42, TF65, TF96 – Thermal Overload Relay
Declaration of Conformity – UKCA:
UK Declaration of Conformity – TF42, TF65, TF96 – Thermal Overload Relay
DNV GL Certificate:
DNV GL Certificate – TF65, TF96, TF140DU, TF140DU-V1000
EAC Certificate:
1SAA941002-2701
IECEx Certificate:
IECEx Certificate – TF65 – Thermal Overload Relays
LR Certificate:
LR Certificate – TF65, TF96 – Thermal Overload Relays
RINA Certificate:
RINA_ELE098115XG
RMRS Certificate:
RMRS Certificate TF65, TF96, TF140DU, TF140DU-V1000
UL Certificate:
UL Certificate of Compliance – TF65, TF96, DB65, DB96, DRS-x – Thermal Overload RelaysContainer InformationPackage Level 1 Units:
1 piece
Package Level 1 Width:
123 mm
Package Level 1 Height:
121 mm
Package Level 1 Depth / Length:
82 mm
Package Level 1 Gross Weight:
0.456 kg
Package Level 1 EAN:
4013614482939
Package Level 2 Units:
12 piece
Package Level 2 Width:
280 mm
Package Level 2 Height:
210 mm
Package Level 2 Depth / Length:
395 mm
Package Level 2 Gross Weight:
5.858 kg
Package Level 2 EAN:
4013614485336ClassificationsObject Classification Code:
F
ETIM 4:
EC000106 – Thermal overload relay
ETIM 5:
EC000106 – Thermal overload relay
ETIM 6:
EC000106 – Thermal overload relay
ETIM 7:
EC000106 – Thermal overload relay
ETIM 8:
EC000106 – Thermal overload relay
eClass:
V11.0 : 27371501
UNSPSC:
39122330
IDEA Granular Category Code (IGCC):
5366 >> Thermal overload relay
E-Number (Finland):
3706585
E-Number (Norway):
4116788
E-Number (Sweden):
3210265
