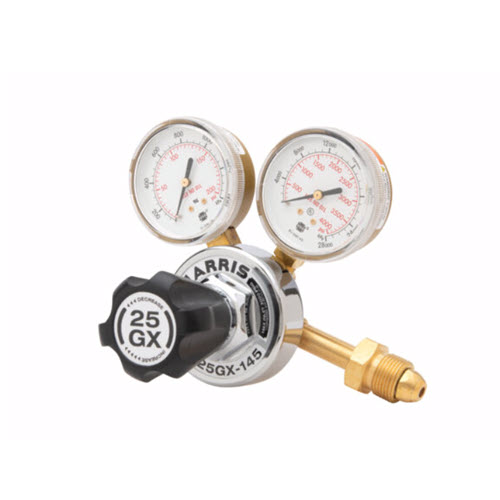

25GX-200-580 Harris Single-Stage Pressure Regulator

25GX-200-580 Harris Single-Stage Pressure Regulator

Model 25GX single-stage regulator is designed to be the next generation workhorse of the Harris industrial line. It features large, easy-to-read gauges and an ergonomic adjusting knob that also shields the adjusting mechanism from contaminants. Supplied with 5/8 in. – 18 adaptor.

FEATURES:

• High end features for economical price
• Workhorse of Harris industrial regulator line
• Ergonomic ABS plastic knob for easy grip and precise adjustment
• Brass body and electroless nickel-plated brass bonnet for longer service life
• Neoprene diaphragm for improved pressure control
• 2.5 in. Steel dual scale easy-to-read gauges
• One-piece encapsulated seat design with internal filter to protect the PTFE Teflon® seat from particulate contamination
• UL® listed
• Supplied with 5/8 in. 18 adaptor PN 9000002

SPECIFICATIONS:

• Adjusting Knob: ABS black plastic
• Body: Brass
• Bonnet: Electroless nickel-plated brass zinc
• Certification: CGA E-4 UL® listed
• Cv: 0.17
• Delivery Pressure Gauge (PSIG): 400
  Delivery Pressure Range (PSIG): 0 – 200
  Diaphragm: Neoprene
  Duty: Medium to heavy
  Gas / Gas Service: Argon, Helium, Nitrogen
  Gauges: 2.5 in. Steel dual scale
  Inlet Connection: CGA 580
  Maximum Inlet Pressure (PSIG): 3000
  Nozzle: Brass
  Outlet Connection: 9/16 in. – 18 RH**
  Pressure Regulation PSIG/100 PSIG: 0.2
  Recommended Items/Accessories: Steel Gauge Guard – Red (Fuel) – PN 4300238 and Steel Gauge Guard – Green (Oxygen) – PN 4300239
  Seat: PTFE Teflon®
  Supply Pressure Gauge (PSIG): 4000
