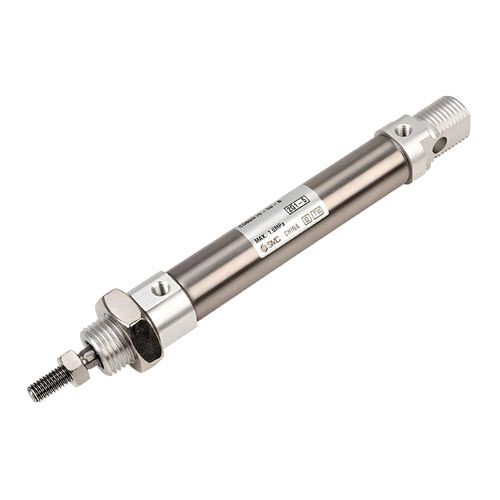

CD85N16-25-B SMC Round Body Pneumatic Cylinder

SMC CD85N16-25-B ISO 6432 Round Body Pneumatic Cylinder, Double Acting, 16 mm Bore x 25 mm Stroke

Brand

SMC Corporation

Description

The CD85N16-25-B is a double-acting pneumatic cylinder from SMC’s C85 Series, designed in accordance with ISO 6432 and CETOP RP52P standards. It features a compact round-body design, built-in magnet for auto-switch sensing, stainless steel construction, and a single piston rod. The cylinder is suitable for industrial automation, packaging equipment, assembly machinery, and material handling applications.

Key Features

ISO 6432 compliant round body cylinder
Double-acting operation
Single piston rod
Built-in magnet for sensor mounting
Auto-switch capable
Stainless steel body
Rubber cushion end damping
Compact and lightweight design
Long service life in dusty environments
Repairable cylinder construction

Technical Specifications

Parameter Value
Series C85
Bore Size 16 mm
Stroke 25 mm
Action Double Acting
Rod Type Single Rod
Rod Thread M6 × 1 Male
Port Size M5 × 0.8
Cushion Rubber Bumper
Operating Pressure 0.05 to 1.0 MPa
Operating Temperature -10°C to +60°C
Magnet Built-in
Standards ISO 6432, CETOP RP52P
Body Material Stainless Steel
Overall Length 136 mm

Part Number Breakdown

CD85N16-25-B

C(D)85 = ISO 6432 Round Body Cylinder Series
N = Basic Mounting Style
16 = 16 mm Bore
25 = 25 mm Stroke
B = Built-in Magnet / Switch Ready Configuration

Typical Applications

Factory automation
Packaging machinery
Assembly systems
Material handling equipment
Textile machinery
General industrial motion control
