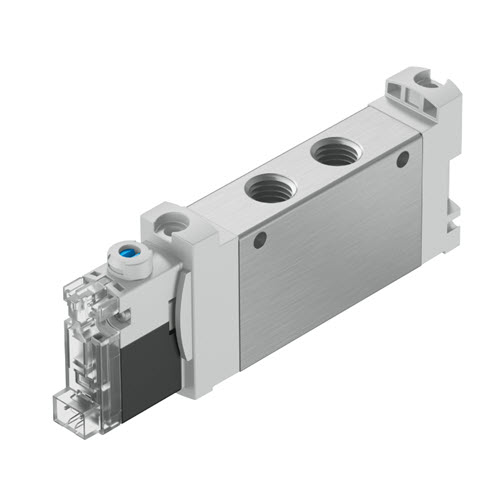

VUVG-LK14-M52-AT-G18-1H2L-S Festo Air solenoid valve Monostable 5/2 8042563

Valve function5/2, monostable
Actuation type Electrical
Valve size14 mm
Standard nominal flow rate 660 l/min
Pneumatic working port G1/8
Operating voltage 24V DC
Operating pressure 0.25 MPa … 0.7 MPa
Operating pressure 2.5 bar … 7 bar
Structural design Piston slide with sealing ring
Reset method Pneumatic spring
Certificationc UL us – Recognized (OL)
Certificate issuing authority UL MH19482
Degree of protection IP40
Exhaust air function With flow control option
Sealing principle Soft
Mounting position Any
Manual override Detenting Non-detenting
Type of control Pilot-controlled
Pilot air supply port Internal
Flow direction Non-reversible
Symbol 00992908
Lap Overlap
Signal status display LED
Max. switching frequency 2 Hz
Switching time off 24 ms
On switching time14 ms
Duty cycle100%
Max. positive test pulse with 0 signal 1600 µs
Max. negative test pulse on 1 signal 3000 µs
Coil characteristics24 V DC: 0.8 W
Permissible voltage fluctuations+/- 10 %
Operating medium Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media Operation with oil lubrication possible (required for further use)
Vibration resistanceTransport application test with severity level 1 as per FN 942017-4 and EN 60068-2-6
Shock resistanceShock test with severity level 1 as per FN 942017-5 and EN 60068-2-27
Corrosion resistance class (CRC) 0 – No corrosion stress
LABS (PWIS) conformity VDMA24364 zone III
Temperature of medium -5 °C … 50 °C
Pilot medium Compressed air as per ISO 8573-1:2010 [7:4:4]
Ambient temperature -5 °C … 50 °C
Product weight 65 g
Electrical connection 2-pin Connection diagram H, horizontal connection Plug
Type of mounting On terminal strip With through-hole
Pneumatic connection 2 G1/8
Pneumatic connection 4 G1/8
Note on materials RoHS-compliant
Seals material HNBR NBR
Housing material Wrought aluminum alloy
