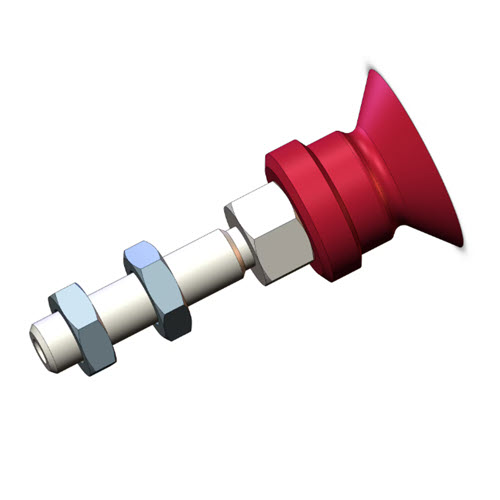

ZPT16CS-A5 SMC vacuum pad w-o buffer ZP VACUUM PAD

The ZPT series vacuum cups are available in diameters from 2 to 125mm, 6-cup materials, and 4-cup designs (flat, flat with ribs, deep and bellows), to suit multiple applications. Vertical vacuum entry connections can be made via one-touch fittings or threaded connections. Optional buffers can be ordered with up to 50mm stroke. SMC’s ZP2 series vacuum pads are available in diameters from 2 to 340mm, and offer a variety of pad materials and designs. The ZP2 series was designed to standardize special products designed for the ZP series. Pad types include: miniature pads, compact pads, nozzle pads, multibellows pads, sponge pads, mark-free pads, oval pad variations, and heavy-duty pad variations. Optional buffers can be ordered with up to 100mm stroke. The ZP3 line of vacuum cups has a compact pad and the buffer body has been shortened by as much as 2.2″ when compared to the ZP series. The optional buffer can be ordered with up to 20mm stroke.

Vertical vacuum entry
With rotating or non-rotating buffer
Pad diameters from 2mm to 50mm
Flat, ribbed, deep, and bellows pad styles
Four different materials available

Overall Weight
10 g
Pad Diameter
16 mm
Pad Material
NBR
Pad Type
Deep Style
Vacuum Entry Type
Male Thread M5 x 0.8
Weight
10 g

Maximum Working Temperature: 200 C
Minimum Working Temperature: -30 C
Pad Diameter: 16.0mm; 16.0in
Pad Height: 17.5mm
Pad Material: Silicone
Pad Style: Vertical
Port Size: M5x0.8
Port Type: Male

Additional Information

Hazardous Materials: No, oK to Ship Via Air
Material Safety Data Sheet (MSDS) Required: No
Country of Origin: US, United States
TAA Compliant: Yes
UNSPSC: 27131608
CA Restricted (Prop 65): Unknown
Prohibited States: AK,HI,PR
