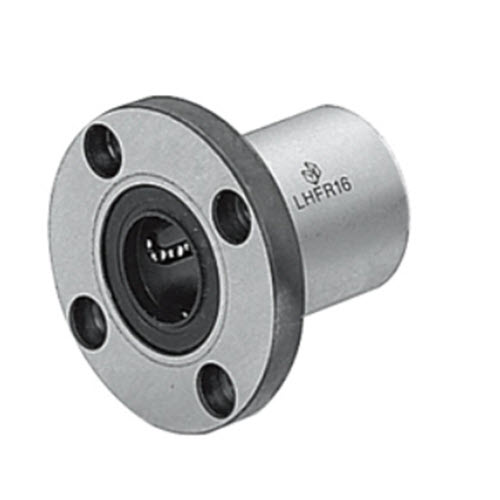

LHFCF16 Linear Ball Bushings – Flanged single.
$0.00
LHFCF16 Linear Ball Bushings – Flanged single
New grease options (Type A: Alvania Grease S2, Type Y: AFF by THK) and more of no seal types are added.
Easy to assemble with bolt-on flanges. The Opposite Counterbored Hole Type is also available.
Detalles
LHFCF16 Linear Ball Bushings – Flanged single
New grease options (Type A: Alvania Grease S2, Type Y: AFF by THK) and more of no seal types are added.
Easy to assemble with bolt-on flanges. The Opposite Counterbored Hole Type is also available.
Configured Specifications:
- TYPE Flange Motion Linear Motion
- Style Standard Outer Cylinder Material [Steel] 52100 Bearing Steel Equivalent
- Outer Cylinder Surface Finish None For Shaft Size(mm) 16
- Overall Length L(mm) 37 Flange Type Standard Flange
- Lubrication Type Standard O.D. D(mm) 28
- Type Standard Flange Length Single
- Ball Recirculating Type Single Basic Dynamic Load Rating (Details)(N) 775
- Basic Static Load Rating(N) 1180 Precision High Grade
- Inner Contact Circle Tolerance (Negative Side)(mm) -0.009 Eccentricity(µm) 12
- Flange Shape Compact Flanged Ball Material 52100 Bearing Steel Equivalent
- Retainer Material Stainless Steel Seals With Seal
- Counterbored Hole Standard Greased filled Standard (Rust Prevent Oil)
