5123 Single-Ended Load Beam

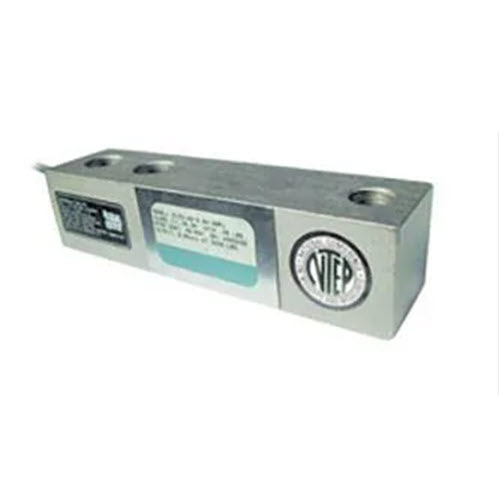

Model 5123 is a low-profile single-ended shear beam type load cell made from nickel-plated tool steel.

Capacities: 500–5000 kg, 1k–10k lbs
Low-profile construction
Certified to OIML R-60, 3000d and NTEP class III, 3000

Description

Model 5123 is a low-profile single-ended shear beam type load cell made from nickel-plated tool steel.

This product is suitable for small and medium platform scales, overhead track scales, hopper scales, and process-weighing applications.

Reliable sealing is ensured by the proprietary TRANSEAL potting compound and additional mechanical protection of the strain gage area.

Ease of installation is made possible through the use of a partially threaded hole to accept levelling feet, load buttons, or loading cables.
