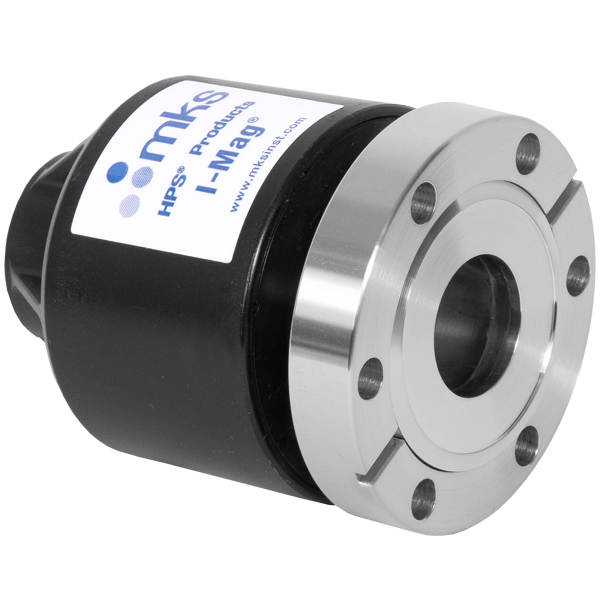

104230002 MKS HPS 423 I-Mag Cold Cathode Vacuum Gauge Sensor CF 2.75 Inlet

104230002 MKS HPS 423 I-Mag Cold Cathode Vacuum Gauge Sensor CF 2.75 Inlet

Using an inverted magnetron design, the 423 I-Mag Sensor can operate at pressures much lower than a traditional Penning cold cathode sensor, as low as 10-11 Torr with the proper controller. This increased pressure range makes the HPS Cold Cathode sensor ideal for UHV use.

Features:

• A unique design feature of the HPS Cold Cathode sensor is a second feedthrough for ion collection.
• In an ordinary single feedthrough design, any current leakage between the anode and ground would result in pressure measurement errors.
• Only the ion current from the cathode contributes to a measurement reading in a dual feedthrough design, making it ideal for process monitoring.
• With no filament to burn out, the 423 I-Mag sensor is not ruined by sudden inrushes of air and is resistant to vibration damage. Additionally, there is no need to adjust the emission current or to degas the gauge, reducing response time to pressure changes.
• If bakeout is required, the magnets and sensor connectors can be removed and the sensor can be baked to 400°C.
