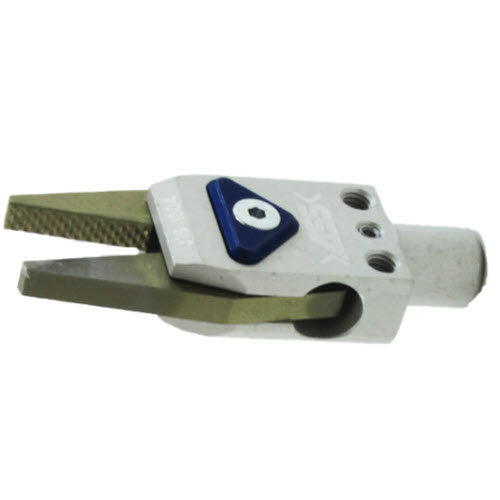

GRZ 10-08 CM Gripper with Jaw Type: Chequered / Chequered

Short description:

• Fits in all 10 mm clamps
• Miniature size gripper
• High closing force (at 6 bar)
• Serrated jaws
• One of the pictures shows the gripper with the optional VLU extension
• Magnets in the jaws allow jaw position detection, see components below
• Single-acting gripper
• Two pistons, Ø 8mm
• Closing force measured at point of jaws at 6 bar
• Maximum air pressure is 6 bar, use dry and filtered air only

Accessories for example:

• Sensor Bracket SH GRZ 10-08
• extension with air duct VL U
• adapter for board mounting AGP GRZ

Specifications:

• Closing Force: 19 N
• Opening width: 10mm
• Piston Ø: 8 mm
• Schaftdurchmesser: 10 mm
