SALD3/4X2-P-L ACE Controls Industrial Shock Absorbers
$0.00
Stroke1.91 inchA max.7.94 inchL24.97 inch
Industrial Shock Absorbers
SALD3/4X2-P-L
High energy absorption and a wide effective weight range
Adjustable
Energy capacity 6,000 in-lbs/cycle
Stroke 1.91 inch
High energy absorption and a wide damping range lead to huge advantages in practice. Alongside generally more compact designs, these small yet very powerful shock absorbers enable full use of the machine’s performance.
TECHNICAL DATA
|

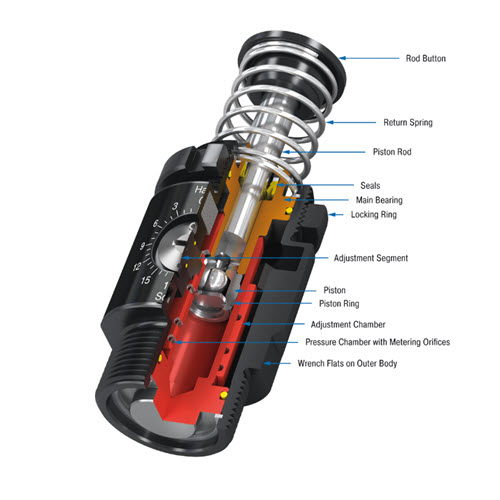

Energy capacity 6,000 in-lbs/cycle Energy capacity 1,300,000 in-lbs/h Energy capacity with air/oil tank 2,000,000 in-lbs/h Effective weight min. 35 lbs Effective weight max. 32,000 lbs Impact velocity range 1 ft/sec to 15 ft/sec Operating temperature range 10 °F to 150 °F Mounting In any position Positive stop External Material Outer body: Nitride hardened steel; Piston rod: Hard chrome plated steel; Rod end button: Hardened steel and corrosion-resistant coating; Return spring: Zinc plated or plastic-coated steel Damping medium Automatic Transmission Fluid (ATF)
SAFETY INFORMATIONExternal materials in the surrounding area can attack the seal components and lead to a shorter service life. Please contact ACE for appropriate solution suggestions. Do not paint the shock absorbers due to heat emission.
SALES DATAWeight F and R Weight S Weight Country of origin Customs tariff number |
