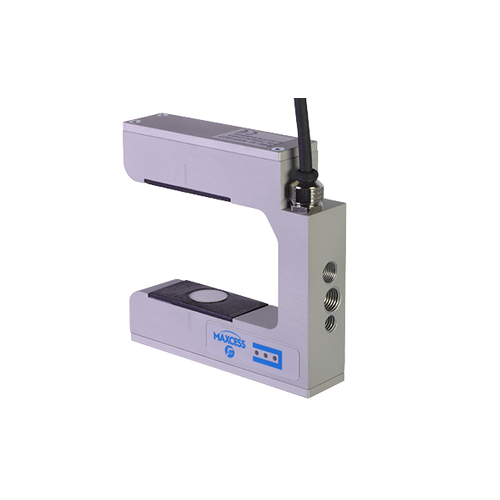

DSE-41 Maxcess International Digital ultrasonic sensor

DSE-41 Maxcess International Digital ultrasonic sensor
Digital ultrasonic sensor insensitive to ambient light and electrostatic discharge with temperature stabilization. Features low power consumption and can be used for new guiding systems as well as for upgrades of existing systems. Fast, easy and robust mounting due to multiple mounting brackets and sensor positioners. Compatible with all available Fife web guide processors.

SPECIFICATIONS:

• Supply voltage: 12 V or 24 V
• 12 V mode: Signal output 0 to 10 mA
• 24 V mode: Signal output 4 to 20 mA
• Insensitive to ambient light
• Insensitive to electrostatic discharge Temperature stabilized
• Low power consumption Compact size
• Built-in LED display visible from both sides
• Multiple mounting brackets
• Sensor positioners available
• Compatible with all available Fife web guide processors
• Calibration required when used with acoustically permeable material
• Frequently used in pairs for center guiding
• Connection to Fife D-MAXE controller for digital acquisition of production data
• Compatible with PLC in 24 V mode
