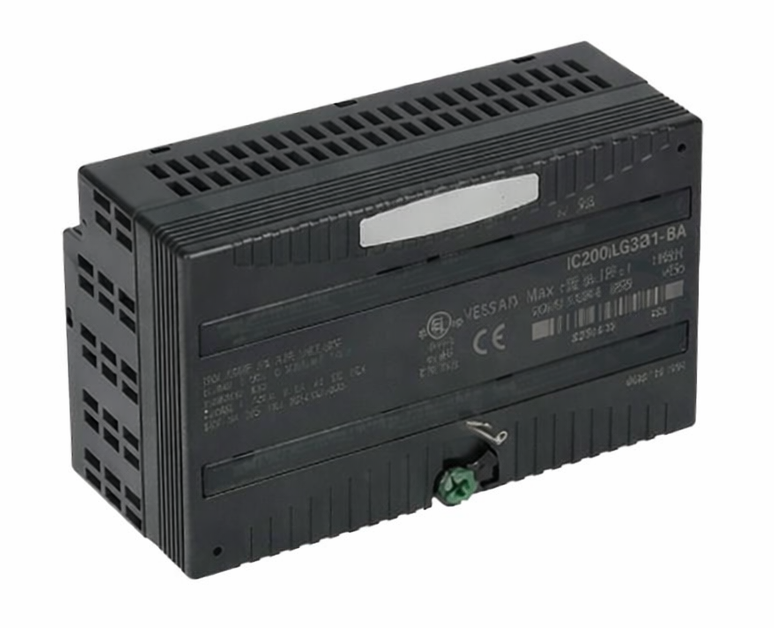

IC200ALG331-BA GE FANUC, VERSAMAX ANALOG OUTPUT MODULE

IC200ALG331-BA GE FANUC, VERSAMAX ANALOG OUTPUT MODULE
The IC200ALG331-AB is a 4-Point Analog Voltage / Current input module from VersaMax I/O series formerly produced by GE Intelligent Platforms, now under Emerson Automation.

FEATURES:

• Four (4) individually isolated output channels that delivers 1-20 mA
• +/- 10 VDC output signals with resolution of 16-bits
• Maximum update rate of 7.0 ms.
• Fully-software configurable with selectable output hold or default last state of operation

SPECIFICATIONS:

• Voltage -10-10 Volts DC
• Analog resolution Current mode: 381 nA nominal; Voltage mode: 381 µV nominal
• Accuracy +/- 0.1% maximum of full scale at 25 Degrees Celsius
• Accuracy at 25 degrees C +/- 0.1% maximum of full scale
• External Supply Voltage Range +18 to +30VDC including ripple
• Isolation Input to Logic 250 Volts AC
• Module width Single slot
