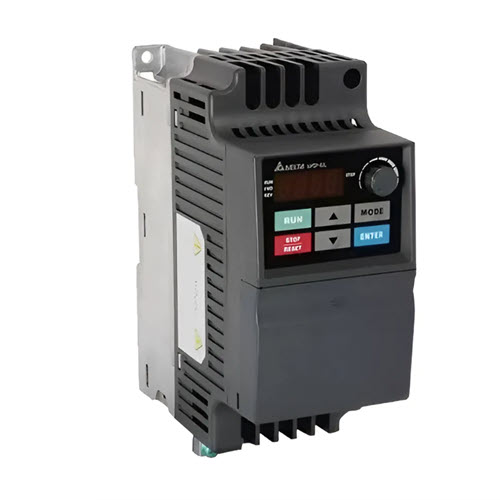

VFD007EL21A Delta Electronics AC Drives 1HP0 1PH 4-2Amps 230V input

The Delta VFD007EL21A is a compact, high-efficiency AC motor drive from the VFD-EL series, designed for low-power applications.
Power and Electrical RatingsRated Output Power: 1.0 HP (0.75 kW)
Input Voltage: 1-phase 200–240V AC (50/60 Hz)
Output Voltage: 3-phase (Proportional to input voltage)
Rated Output Current: 4.2 A
Rated Input Current: 9.5 A
Frequency Range: 0.1 to 600 HzPerformance and ControlControl Method: V/f control (Voltage-to-Frequency)
Overload Capacity: 150% of rated current for 60 seconds
Braking: Includes built-in braking chopper
PID Control: Integrated feedback control for pressure or flow regulation
Communication: RS-485 interface (RJ-45) with Modbus protocol supportPhysical and Environmental SpecificationsCooling: Natural cooling (no fan)
Enclosure Rating: IP20
Frame Size: Frame A
Dimensions: 174 mm (H) x 72 mm (W) x 136 mm (D)
Net Weight: Approximately 1.2 kgKey Protection FeaturesEMI Filter: Built-in filter to reduce electromagnetic interference (EN61800-3 compliant)
Safety: Overcurrent, overvoltage, undervoltage, overheating, overload, and ground fault protection
Mounting: Supports DIN rail mounting and side-by-side installation to save cabinet space
