MC3350M-4-HT ACE Controls Industrial Shock Absorbers

Energy capacity 2,920 in-lbs/cycle

Energy capacity at 20 °C 2,159,580 in-lbs/h

Energy capacity at 100 °C 823,118 in-lbs/h

Effective weight min. 1,560 lbs

Effective weight max. 6,240 lbs

Hardness -4

Return Force max. 30.3 lbs

Return Force min. 9.9 lbs

Return Time 0.06 s

Side Load Angle max. 3 °

Impact velocity range 0.5 ft/sec to 16.5 ft/sec. Other speeds on request.

Operating temperature range 32 °F to 302 °F

Mounting In any position

Positive stop Integrated

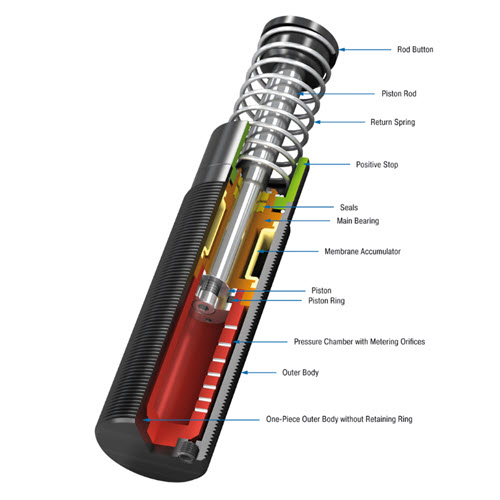

Material Outer body: Nitride hardened steel; Piston rod: Hard chrome plated steel; Rod end button: Hardened steel and corrosion-resistant coating; Return spring: Zinc plated or plastic-coated steel; Accessories: Steel with black oxide finish or nitride hardened

Damping medium Synthetic high temperature oil

NOTE

A noise reduction of 3 dB to 7 dB is possible when using the special impact button (PP).

SAFETY INFORMATION

External materials in the surrounding area can attack the seal components and lead to a shorter service life. Please contact ACE for appropriate solution suggestions. Do not paint the shock absorbers due to heat emission.

ON REQUEST

Nickel-plated, increased corrosion protection, mounting inside air cylinders or other special options are available on request. Adjustable HT and LT shock absorbers.

SALES DATA

Weight
1.389 lbs

F and R Weight
0.0 lbs

S Weight
0.0 lbs

Country of origin
US

Customs tariff number
84879059
